ZJA Series used transformer oil recycle equipment
- Payment Type:
- T/T, L/C
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Payment Type: | T/T,L/C |
| Certificate: | CE SGS |
| Transportation: | Ocean,Land |

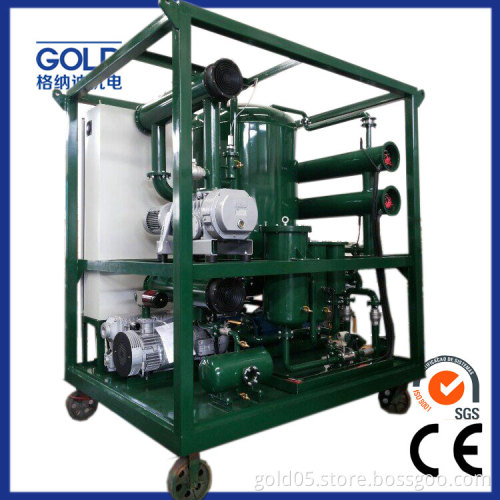

ZJA Series used transformer oil recycle equipment
Applicaton: 500 KV ,110 KV,220 KV power system.
Features
1.The used transformer oil recycle equipment has two separating house made by stainless steel. Oil flow by rotation in stereo evaporation to degas and dehydrate well.
2.The used transformer oil recycle equipment equips two separating house made by stainless steel. Oil flow by rotation in stereo evaporation to degas and dehydrate well. The combination of axial fan and condenser make vapor from vacuum pump and roots pump into water, it can prolong time to change vacuum oil while meet emission standard.
3.Multiple Filter Housings With Cartridge Style Filter Elements, big filtering area to hold more particles. Meanwhile, the hgih efficiency transformer oil filter machine equips filters from famous company in world.
4.The used transformer oil recycling machine control system: IEC standard with each wire marked. tri-unity control to avoid wrong operation as lack-phase, wrong phase and overload. 5.Transformer Oil level in vacuum tank is controlled by photoelectric switch, which is flexible and accurate. No oil-spraying.
ZJA series transformer oil dehydration plant:
|
Item |
Parameter |
Type Unit |
ZJA1.8KY |
ZJA3KY |
ZJA6KY |
ZJA9KY |
ZJA12KY |
ZJA18KY |
|
|
Technical parameter |
Flow Rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
|
Working Vacuity |
Pa |
≤80 |
|||||||
|
Working pressure |
Mpa |
≤0.35 |
|||||||
|
Temperature Range |
oC |
45-65 |
|||||||
|
Power Supply |
|
50Hz 380V 3-Phase 4-Wire |
|||||||
|
Total Power |
KW |
18+2.25 |
30+6 |
2X30+6.6 |
3X30+8.2 |
4X30+10 |
5X30+16.5 |
||
|
Inlet/Outlet Diameter |
mm |
32 / 25 |
38 / 32 |
44 / 38 |
48 / 44 |
64 / 48 |
76 / 64 |
||
|
Size |
Length |
mm |
1200 |
1500 |
1870 |
1930 |
2160 |
2250 |
|
|
Width |
mm |
950 |
1150 |
1250 |
1400 |
1600 |
1750 |
||
|
Height |
mm |
1600 |
2000 |
2200 |
2460 |
2650 |
2650 |
||
|
Weight |
Kg |
650 |
900 |
1200 |
1600 |
2200 |
3000 |
||
|
Oil treatment index |
Breakdown Voltage |
KV |
70-75 |
||||||
|
Water Content |
ppm |
3~5 |
|||||||
|
Gas Content |
% |
≤0.2 |
|||||||
|
Filtration accuracy |
µm |
≤1~3 |
|||||||
