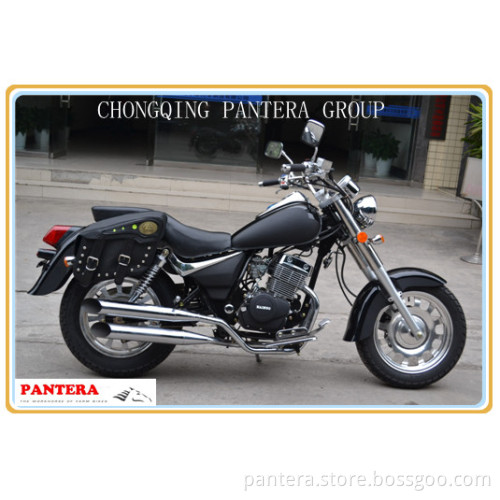

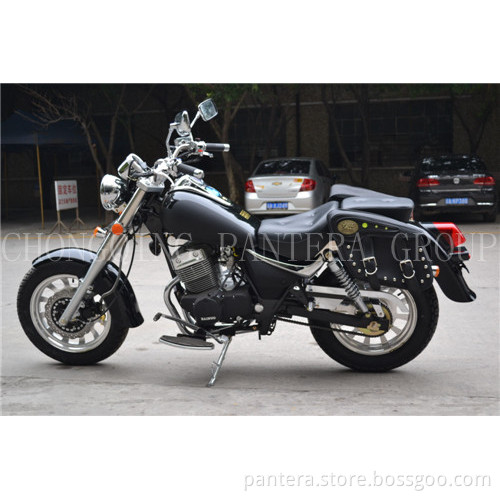

150cc/250cc Cruiser MotorcycleSM200-2

ENGINE

Engine Type: Single cylinder,wind-cooled, four stroke,

Displacement (ml): 223.7

Bore X Stroke (mm): 53x53

Compression Ratio: 9.2:1

Max. Power (kw/r/min) 12.0/8500

Max. Torque (N.m/r/min): 14.5/5500

Max. Speed (Km/h): ≥90

Lubrication: Pressure ,splash

Clutch Type: Multiplate wet clutch, Manual

Ignition: CDI

Starting System: E-start

Transmission System: Chain drive

CHASSIS

Front Brake: disc brake

Rear Brake: Drum brake

Front Tire: 110/90-16

Rear Tire: 130/90-15

Battery: 12V/9Ah

DIMENSIONS

L X W X H (mm): 2280*760*1150

Seat Height (mm): 730

Wheelbase (mm): 1515

Min. Ground Clearance(mm): 150

Max. Permissionable Weight (kg): 150

Dry. Weigth (kg): 145

Engine Oil (L): 1.8L SAE15W/40

Fuel Tank Capacity (L): 13.2
