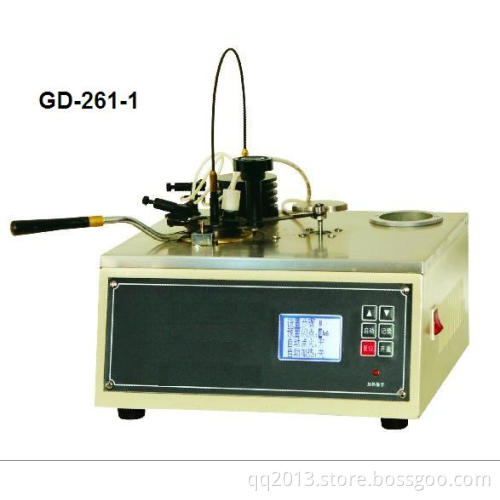

GD-261-1 ASTMD93 Pensky-Martens Closed Cup Flash Point analyzer

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air, BY EXPRESS

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	20 SETS
Supply Ability:	10
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Transportation:	Ocean,Air,BY EXPRESS

Product Description

Summary

This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products in the temperature range from 40°C to 360°C.

I. Main technical features

1. Single chip microcomputer control technique.LCD screen displays.English man-machine interaction interface.The heating power is continuously step-less adjustable.The rate of heating up is exact.Easy setting for parameters.

2. The LCD screen has prompting menu,prompting input operation interface.It shows the setted parameters,real-time temperatures and other test parameters.Press the [record"button when the flash point appears.The screen will show and reserve the flash point.

3. The structure is newly design and small.Stainless steel table-board looks clean and beautiful.It can be used as long as equipped with gas or other civilian fuels.It is easy to use and test results exact.

II. Main technical specifications and parameters

1. Power supply:AC( 220±10% )V, 50Hz.

2. Heating device:(1) The furnace is silicon carbide material. Power is 600W.

(2) The heating power is adjustable from 0 W to 600W.

3. Heating rate:Procedure A: (5~6)°C/min

Procedure B :(1~1.6)°C/min

Automatically controlled

4. Stirring device:(1)Stirring motor: BYGH101stepping motor

(2) Driving mode: flexible shaft

(3) Shaft size: 8mm×40mm

5. Stirring rate:(1) Procedure A: (90~120)RPM

(2) Procedure B: (250±10)RPM

6. Igniting device: (1) Igniting source: gas(or other civilian fuels,the same below)

(2) Electric ignition. Gas flame diameter:3.2mm~4.8mm

7. Temperature testing probe:PT100

8. Ambient temperature:≤ 35°C

9. Relative humidity:≤ 85%

10.Total power consumption:≤ 650W

The same series products:

Model	GD-261	GD-261B	GD-261A	GD-261D	GD-5208	GD-5208A
Standard	GB/T261	GB/T261	GB/T261	GB/T261	GB/T5208	GB/T5208
Range	ambient~300°C	ambient~250°C	ambient~250°C	ambient~300°C	-30°C~50°C	50°C~100°C
Repeatability	≤2°C	≤2°C	Flash point≤104°C, error: 2°C Flash point>104°C, error: 6°C	≤2°C	<2°Csame operator) <3°Cdifferent operators)
Reproductivity	≤4°C	≤4°C	Flash point≤104°C, Error :4°C Flash point>104°C, error:8°C	≤4°C	<2°Csame operator) <3°Cdifferent operators)
Automatic up/down	N	N	Y	Y	N	N
With microprinter	N	Y	Y	Y	Y	Y
Display	N	N	Y	Y	Y	Y
Communication port	N	N	N	Y	N	N
Sample	Standard oil cup	Standard oil cup	Standard oil cup	Standard oil cup	2ml	2ml
