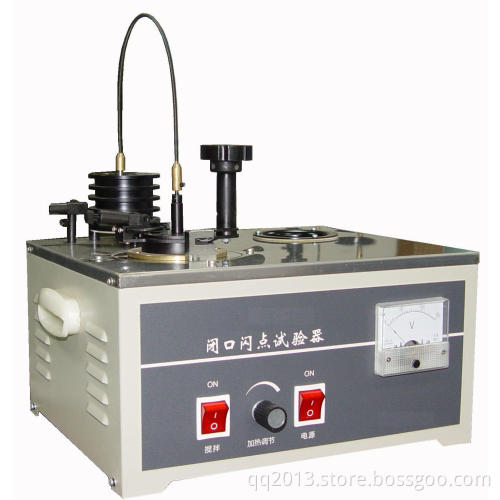

GD-261 Petroleum Product Pensky-Martens Closed Cup Flash Point Tester hand movement

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air, EXPRESS

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	20 SETS
Supply Ability:	10
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Transportation:	Ocean,Air,EXPRESS

Product Description

Summary

This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products in the temperature range from 40°C to 360°C.

I. Main technical features

1. This instrument is designed as per GB/T261 and ASTM D93.

2. The heating power is continuously and stepless adjustable. The power is shown visually by voltmeter.The temperature control mode is advanced and reasonable.

3. The structure is designed small and exquisite.The stainless-steel table board is beautiful and easy to clean.

4. Operation is easy.Test results are precise.It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.

II. Main technical specification and parameters

1. Power supply:AC (220±10%)V, 50Hz.

2. Heating device::The heating power is continuously adjustable from 0 W to 600W.

3. Heating rate::(1~12)°C/min;Controllable and adjustable.

4. Stirring rate:(1) Procedure A: (90~120)RPM

(2) Procedure B: (250±10)RPM

5. Standard oil cup:(1) Inner diameter: 50.7mm~50.8mm.

(2) Depth: 55.7mm~56.0mm

(3) The scribed line depth of capacity of testing oil: 33.9mm~34.3mm.

(4) Capacity of testing oil:about 70ml

6. Igniting device:(1) Igniting source: gas(or other civilian fuels,the same below)

(2) Electric ignition. Gas flame diameter:3.2mm~4.8mm

7. Thermometers:Mercury-in-glass thermometer, correspond with GB/T261-2008 and ASTM E1.

(1)Scale -5°C~110°C, division 0.5°C.

(2)Scale 20°C~150°C, division 1°C.

(3)Scale 90°C~370°C,division 2°C.

8. Ambient temperature:≤ 35°C

9. Relative humidity:≤ 85%

10.Total power consumption:≤ 650W

We are a professional manufacturer of petroleum product analysis equipment, with many years of experience in research,which is in the leading position in China .

Our main products range is:

oil filter

Flash Point Tester,

Viscometer, Engler Viscometer,

Water Content Tester,

Kinematic Viscometer,

Distillation Tester,

Density Tester,

Rust and Corrosion Tester,

Sulphur Content Tester, etc.

We have developed sales channels in many countries and regions such as Japan, Korea, Hongkong, Taiwan, Regions of Southeast Asia, Middle East, Europe,

North and South America etc, and have gained strong advantage and high reputation in international market.

We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development.Client, quality and service are our supreme target!

All of the models promise good quality and one year overseas warranty .

Hope to establish reliable business relationship sincerely in coming days. Should you have any questions, please feel free to contact me.
