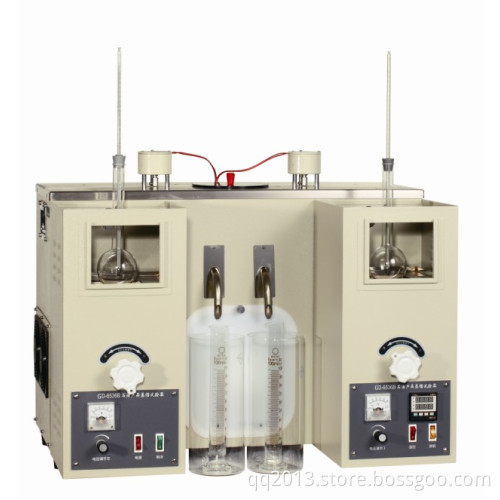

GD-6536B Liquid petroleum products Distillation Characteristics test meter (low temperature Double Units)

   This instrument is a kind of double-units instrument which the minimum temperature of the condenser pipe can reach 0°C.It is an ideal distillation tester for petroleum products under low temperature condition.

I. Main technical features
1.The instrument adopts low temperature and double units working mode. The minimum temperature can set to 0°C.It can do test for one sample or two samples at same time.It highly improves the work efficiency.

2.It adopts digital temperature controller, stainless-steel heater, new type refrigeration compressor and electric stirrer to constitute constant temperature bath. The temperature in the bath is uniform,can fully meet the requirements of test.

3.It adopts special designed structure, cooling speed is fast.The bath temperature can cool down from room temperature to 0°C within 50 minutes.

4.It adopts special heating furnace to ensure the safety of test. Heating power can be stepless adjusted to meet the requirements of test.

II. Main technical specifications and parameters

1.Power supply:  AC(220±10%)V, 50Hz

2.Heating power of electric furnace: 1000W×2.

3.Capacity of measuring cylinder: 100ml, division value is 1ml.

4.Distillation flask: 125ml,meet the requirements of GB/T 6536

5.Thermometer: Stick type, complete immersion, scale range for each:(-2~300)°C,(-2~400)°C,
                        Division value is 1°C.

6.Active plate of electric furnace: silicon carbide, bore diameter is: φ32mm, φ38mm, φ50mm.
7.Temperature controller:1) Control range: 0°C~60°C
                               2) Accuracy: ±0.5°C
                             3) Temperature display: LED
Note: The temperature control is to control the temperature of condensate in the condenser pipe.

8.Ambient temperature: ≤30°C

9.Relative humidity: ≤85%

10.Cooling system: New type refrigeration compressor

11.Overall power consumption: ≤ 4000W

12.Overall dimension:730mm×530mm×580mm
