Vessel type waste motor oil recycling equipment
- Payment Type:
- T/T, L/C
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 120 Days
- Transportation:
- Ocean
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 10 |
| Payment Type: | T/T,L/C |
| Transportation: | Ocean |
Product Description
Product Description

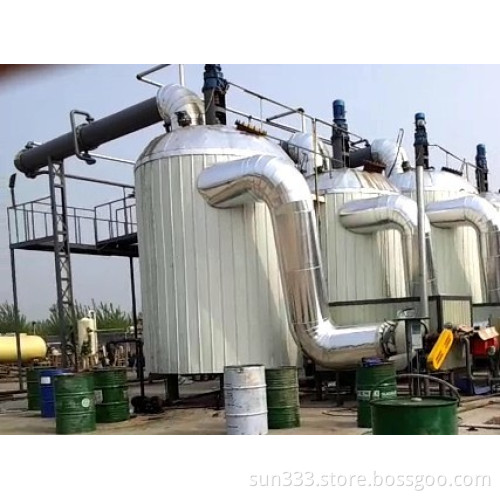

Vessel type vacuum distillation process is
an updated process of common vessel vacuum distillation. It is a vacuum
distillation vessel with heating facility and vacuuming system. It is a simple
way to make oil distillation. But traditional vessels we saw many problems, for
example, somebody use direct burner at the bottom of vessel, somebody use
heating coils inside with thermal oil medium, direct heating at the bottom may
make the oil uneven heated and heating efficiency is low, generally maximal
capacity is around 10TPD,coil type heating is more easy to control, but the
problem is after a certain period of heating, the oil sludge is attached on the
coils and it is not easy to clean, oil sludge coked on the coils make the heat
of thermal oil can`t be effectively conducted to oil in vessel. The plant from
our company utilized the heating method called hot wind heating method, the
vessel is made of special material, and the external of vessel is a special
heating layer with hot wind path, it is a perfect way make the oil heated
averagely, and the heating temperature is very easy to control, the maximal
temperature can reach 700 degree, we can get the temperature what we want for
oil distillation. Except average heating, a scraping
agitator inside keep blending to help evaporation and prevent coking, strong
vacuum units to make the oil distilled under high vacuum. Cracking of oil is effectively
avoided and the oil index is very good, after rectification with clay we can
get good quality base oil(considering the scale, not use furfural rectification).

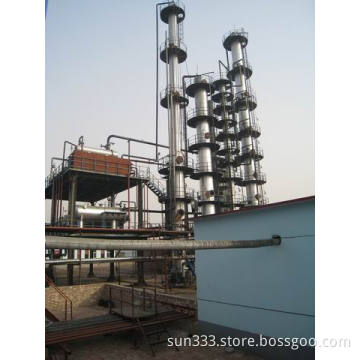

If light fraction content in used oil is high, the oil would be pretreated by atmospheric
distillation tower or an evaporator for water, gasoline, diesel separation.
an updated process of common vessel vacuum distillation. It is a vacuum
distillation vessel with heating facility and vacuuming system. It is a simple
way to make oil distillation. But traditional vessels we saw many problems, for
example, somebody use direct burner at the bottom of vessel, somebody use
heating coils inside with thermal oil medium, direct heating at the bottom may
make the oil uneven heated and heating efficiency is low, generally maximal
capacity is around 10TPD,coil type heating is more easy to control, but the
problem is after a certain period of heating, the oil sludge is attached on the
coils and it is not easy to clean, oil sludge coked on the coils make the heat
of thermal oil can`t be effectively conducted to oil in vessel. The plant from
our company utilized the heating method called hot wind heating method, the
vessel is made of special material, and the external of vessel is a special
heating layer with hot wind path, it is a perfect way make the oil heated
averagely, and the heating temperature is very easy to control, the maximal
temperature can reach 700 degree, we can get the temperature what we want for
oil distillation. Except average heating, a scraping
agitator inside keep blending to help evaporation and prevent coking, strong
vacuum units to make the oil distilled under high vacuum. Cracking of oil is effectively
avoided and the oil index is very good, after rectification with clay we can
get good quality base oil(considering the scale, not use furfural rectification).
If light fraction content in used oil is high, the oil would be pretreated by atmospheric
distillation tower or an evaporator for water, gasoline, diesel separation.
Advantages of hot wind vessel
type vacuum distillation
1.
Without high columns it can be
hidden in a proofed workshop. Rational internal structure of vessel effectively
blocks coking.
2.
The easiest way to start oil
project, easy maintenance, high automatic, no need experienced operators.
3.
With effective
heating method, high vacuum degree, the oil quality is guaranteed.
