300m video camera well camera drilling hole camera downhloe camera
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 60set/m |
geo well camera underwater video camera
Main Applications and Features

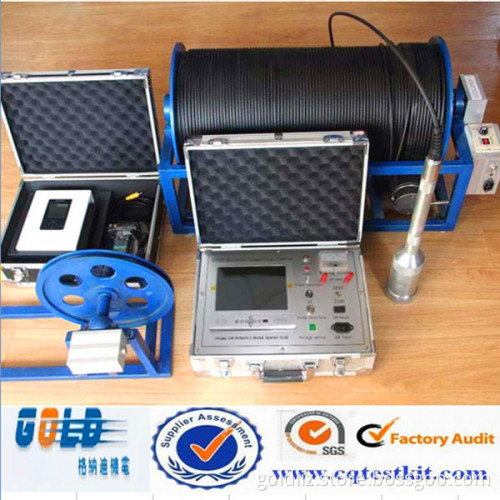

1. JKX-3 Borehole Inspection Camera adopts reflective axicon lens to take 360° hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order N→E→S→W→N. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.
2. Data
Processing Function
· Browsing, real-time display of position and
depth
· Marking of images and literal texts
·
Making of interpretation lines on images
· For convolution
rotation, see coregraph
· Calculate the inclination of stratum
construction
· Measure the thickness of rock stratum and
the width of cracks
Technical Specifications
- 1Vp-p PAL TV Signal 75Ω Video Output
- 1Vp-p PAL TV Signal 75Ω Video Output
- Definition: 450TVL
- Viewing Angle: 360° Hole Wall
- Lighting: Built-in K3200° Trichromatic Lighting Ring
- Probe Diameter: φ70mm
- Adaptation Aperture: φ75~φ300mm
- Power Supply: AC220V±10% 50Hz
- Software Operating Environment: Win2000/XP
- Adapted Hole Depth: 0~2000mm Clear Water Hole or Dry Hole
