XY-2 Diamond core drilling machine
- Payment Type:
- T/T, L/C
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 100sets |
| Payment Type: | T/T,L/C |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications
it is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling

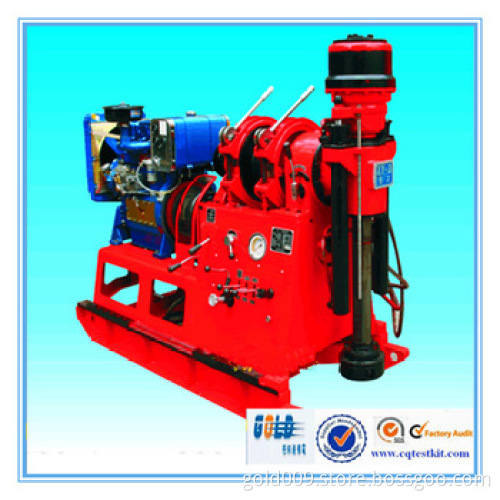

XY-2 DRILLING MACHINE
XY-2 hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydrogeological, water well and pile grouting hole drilling
Technical Specifications
|
Drilling capacity(m) |
73 rod |
100 |
|
60 rod |
200 |
|
|
50 rod |
380 |
|
|
42 rod |
530 |
|
|
|
|
65;114;180;248; |
|
Reverse |
51;242 |
|
|
Max torque (Nm) |
2760 |
|
|
Angle reange |
0-90° |
|
|
Spindle max pull force(KN) |
60 |
|
|
Spindle stroke (mm) |
600 |
|
|
Hoist max life capacity with single rope (KN) |
30 |
|
|
Spindle inner dia (mm) |
76 |
|
|
Oil pump |
SCB32/12 |
|
|
Power unit |
Electric motor |
Y180L-4,22Kw |
|
Diesel engine |
395K2,19.85Kw |
|
|
|
2150×900×1690 |
|
|
Drill body weight (excluding power)(kg) |
950 |
|
