DUK-2A underground water detecting 200m depth, water detection meters

Specifications

it is go through the resistivity and show the 2Dor 3D imaging for help the water and metal detecting

it is Widely used for high-resolution research, tomography and monitoring applications.

Coal mining gobs, caves of Custer area, geological disasters survey like landslides other geological disasters.

High resolution engineering geological exploration like factory foundations, highways, bridges, railways, civil engineering, hydrology, engineering, environmental.

For landslides and other geological disaster exploration.

Metal and non-metallic mineral resources exploration and geothermal exploration

Main Features.

Assembly data acquisition devices and multiplexer together in the same case,which not only reduce the volume but also decrease the weight, thus avoid errors caused by operating the devices separately and due to inconformity of switch parameter settings.

Maintain all functions ofDUK2A MultiElectrodes Resistivity Survey System and conventional electrical method. Add high and low current transform taps, add high and low input impedance transformation tap, and improve the acquisition capability of weak signals.

Add storage and output functions for compensation SP voltage value.

Adopt 16-bit A/D and 16-bit D/A, thus improve the discernibility for measurement of collected data.

Add the function for automatically detect grounding resistance before each measurement; give directions for the points exceed the grounding resistance value, for automatically proceeding with further measurement if required; the value at such point can be replaced with a fixed symbol to facilitate the elimination of this point while processing the information and data.

Greatly enhance the repeatability of measured data.

Technical Specifications

Specifications

it is go through the resistivity and show the 2Dor 3D imaging for help the water and metal detecting

Welcome to our factory , DUK-2A 4p borehole electric esistivity system metal detecting

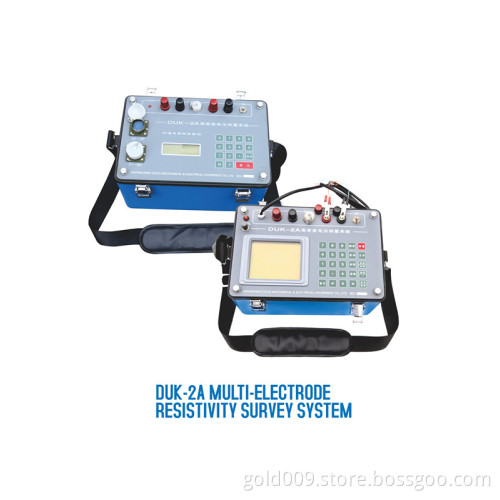

DUK-2A Multiplex Electrode Converter

Conversion Electrodes: 60 channels or 120 channels

Sopported manual configuration: Wenner, Schlumberger 1, Schlumberger 2, Dipole-Dipole, Combined Profiles, Differential, Pole-Pole, Triple-Pole Rolling,

Operating Mode: 16-key keypad with 90 character LCD display combines to form man-machine dialogue operation.

Maximum Allowable Current: 2A

Maximum Withstand Voltage: 500V DC

Insulating Property: 500MΩ

Electroshock Break-over Resistance: smaller than 0.1Ω

Power Consumption: 50 mA (Standby)

Power Supply: 1# Dry Cell (or rechargeable battery with the same specification) 8 pcs.

Working Temperature: -10°C~ +50°C, 95%Rh

Weight: 7 kg (60 channels), 7.5kg (120 channels)

Volume: 305×200×202mm (60 channels), 324×200×245mm (120 channels
