WCZ-3 Water Detection Equipment and Geological Exploration Equipment
- Payment Type:
- T/T, L/C
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 100sets |
| Payment Type: | T/T,L/C |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications
Water Detection Equipment and Geological Exploration Equipment
1. Portable.
2. Easy to operate
3.High accuracy
Main Applications:
1. Mineral prospecting, such as iron ore, lead-zinc mine,copper mine.
2. Cooperative mine prospecting, study the ore body's burial depth, dipping and continuity, study the ore body's shape,size,estimate mineral bed's scale.
3. Prospecting for gas or oil, research geoligic structure relevant to gas or oil.
4. Geologic survey, geologic mapping.
5. Ground diurnal variation for aero-magnetic and marine magnetic survey.
6. Faults orientation.
7. Archaeology
8. Hydrology.
9. Engineering prospecting,e.g, pipeline finding.
10. Earthquake monitoring, volcano monitoring and other environmental disaster.
11. Small ferromagnetic objects' finding.
Technical specifications:
|
Model & Name: |

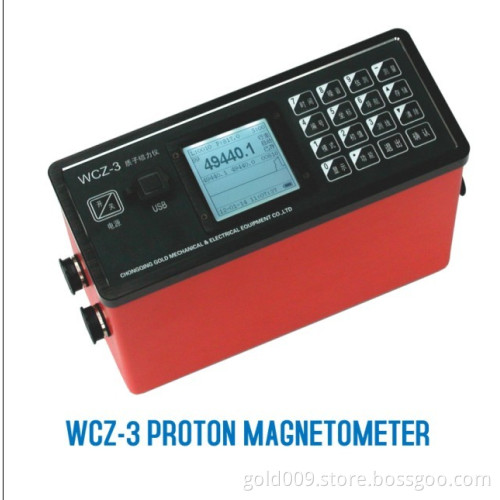

WCZ-3 Proton Magnetometer |
|
Measurement Range: |
2000nT~100000nT |
|
Measurement Precision: |
1nT |
|
Allowed Gradient: |
5000Nt/m |
|
Data Stored: |
100,000 out-power protection |
|
LCD Screen: |
240*128 |
|
Keyboard: |
22keys |
|
Interface: |
RS-232C standard serial port |
|
Power: |
Outside rechargeable batteries,12V/2.3Ah, also power outside |
|
Bulk of Mainframe: |
230mm*155mm*65mm |
|
Weight of Mainframe: |
2.5kg(include batteries) |
|
Bulk of Sonde: |
Φ75mm*155mm |
|
Weight of Sonde: |
0.8kg |
|
Operating Temperature: |
-10°C~+50°C |
