JGS-1B Well Logging System logging instrument dipmeter longing
- Payment Type:
- T/T, L/C
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 100sets |
| Payment Type: | T/T,L/C |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications
Coal Field Logging, Hydrological Engineering Logging, Solid Metal Ore Logging, Other Minerals Logging

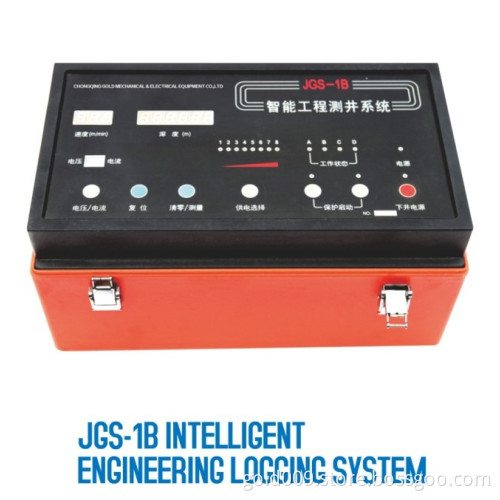

JGS-1B Well Logging System logging instrument dipmeter longing
Main Applications and Features
Coal Field Digital Integrated Logging
Hydrological Engineering Digital Integrated Logging
Solid Metal Ore Digital Integrated Logging
Other Minerals Digital Integrated Logging
External Laptop (Desktop PC)
For upward logging, also for downward logging
Receive digital signal, analog signal
8 taps of power supply current, Optional
Automatic sampling as per depth interval, sampling interval arbitrarily
Indoor simulation logging, repeatability observation of instruments and probes
Membrane panel, attractive and durable
Technical Specifications
12bit A/D Conversion, Program-Controlled Magnification K=0.5~128
Counting Channel: f≤500KHz
Digital Signal Transmission Frequency: 9600bit/s
Power Supply Cycle: 400ms
Current: 2mA~500 mA Optional
Signal Input Range: ≤±10V
Continuous Working Time: ≤24 hr
Power Consumption: <200W
Volume: 420×260×210mm,
Weight: <7Kg
Working Temperature Range: -10°C~ +50°C
Working Power Supply: AC220V±10% 50Hz ±5%
Logging Speed: 0~30 m/min Adjustable (as per sampling interval)
Logging Working Software System
12bit A/D Conversion, Program-Controlled Magnification
Operation Environment: Windows98/2000/XP
Sampling Interval: Arbitrary
(1~1000cm)
Setting (1cm, 2cm, ...1000cm)
Maximum depth of one-time acquisition: 3000m (0.1m sampling interval)
Depth automatic alignment of multi-parameters
Superposition of multi-parameters up to 10
Curve movement, anomaly removal, smoothing, inverted order, , segmentation, calculation, etc.
Interpretation of profile input, automatic generation of rock stratum name, thickness and baseplate depth
Curve amplification and compression
5 types of curve depth ratio: 1:50, 1:100, 1:200, 1:500, 1:1000
Continuous drawing production in color or black-and-white effects
Output graph maximum width: 415mm, length: 2310mm
