JQX-2 Drilling Inclinometer Borehole Inclinometer
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 100sets |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
Specifications

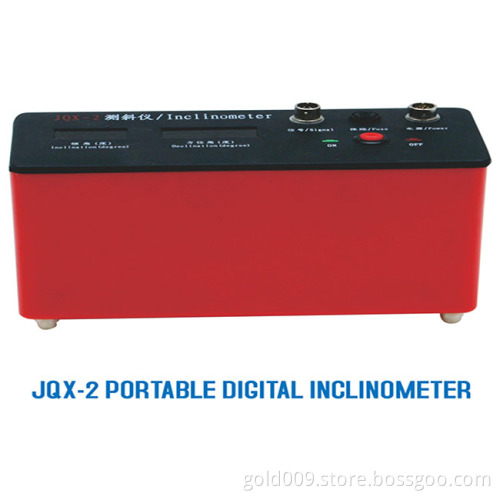

JQX-2 Drilling Inclinometer Borehole Inclinometer is used to measure the inclination of the borehore after drilling
JQX-2 Drilling Inclinometer Borehole Inclinometer
1. Features:
1.Direct-reading of vertex and azimuth
2. Digital display, point measurement or continuous measurement
3.Simple, reliable operation.
2. System Component:
Main instrument, probe, cable and other component.
3. Technical Specification:
1. Vertex Coverage: 0~60°
2. Vertex Accuracy: ≤ 0.1°
3 Azimuth Coverage: 0~360°
4. Azimuth Accuracy: ±4° (Vertex ≥ 3°), ±6° (2° ≤ Vertex ≤ 3°)
5. Working Temperature: 0~85 °C
6. Probe Outline Dimension: φ42×1000 mm
7. Ground Instrument Dimension: 240×95×140mm
8. Probe Weight: 2 Kg (weighing bar 5 Kg)
9. Probe Downhole Length: ≤1000
