CCTV Inspection Camera for Water Well
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10001sets |
| Supply Ability: | 1000sets/month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Transportation: | Ocean,Air |
I--Application
The inspection camera is mainly used in engineering, hydrology, mining, petroleum, geotechnical, civil and other units or departments.
It can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc, such as rock structure, geological structure, rock strike, faults, fissures, dissection, underwater and undersea survey.
II--Technical Specification
|
No. |
Name |
Dimension |
Specification |
|
1 |

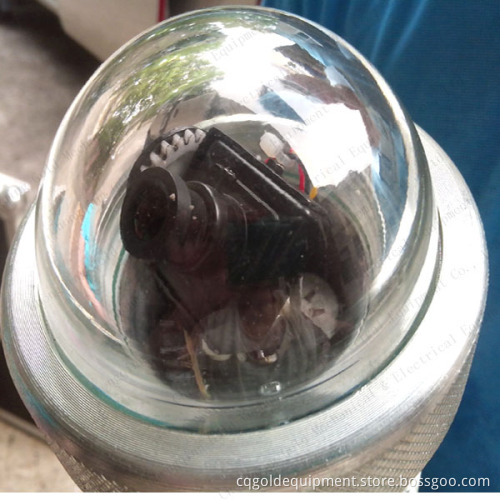

Probe |
Dia.: 80mm |
(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-30Mpa (can be under 3000m deep water) (4) Light: 6-12 LED Lights |
|
2 |
Camera |
|
(1) Inductor 1/3'' CCD, (2) Image definition is HD 850 TVL (3 Watertight (4) Camera Type: Panoramic |
|
3 |
Professional Cable |
0-2000m(optional) |
(1) Tension is 150kg, (2) Destroy tension is 260kg |
|
4 |
Control Machine |
|
(1) 220V/380V optional (2) LCD display (3) Aircraft grade aluminum alloy material |
|
5 |
Down-hole Pulley |
|
Can change the pulley size according to the well opening size |
|
6 |
Cable Winch |
|
Hand/Electrical winch |
