GDGK-307 GIS Mechanical Properties Tester

Get Latest Price

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Land

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Incoterm:	FOB
Transportation:	Land

Product Description

Ⅰ. General introduction

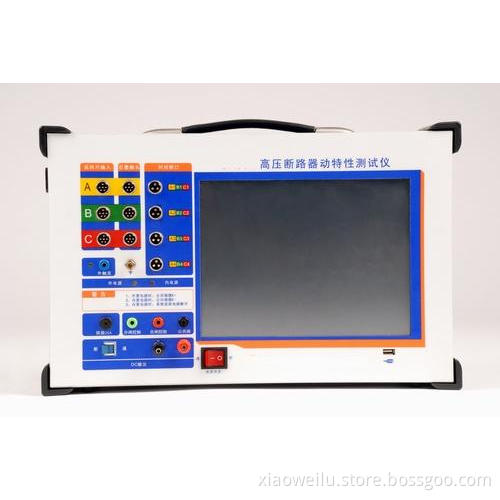

GDGK-307 GIS Mechanical Properties Tester is special instrument for power system GIS mechanical properties measuring. The instrument takes IPC for the core to sample and data process. It has 12.1 LCD to display and 12.1 touch pad for operation. Rich experience database makes the tester more intelligence. The tester has the characteristic of accurate test data, strong anti-jamming, easy operation, small size and light weight.

Ⅱ. Functions

1. Measure opening and closing time, synchronism performance ,bounce time and bounce times of common and graphite GIS.

2. Measure distance, average speed and instantaneous speed of on and off of common and graphite GIS.

3Finish test of continuous on and off of common and graphite GIS.

4. Measure coil current of common and graphite GIS.

5. Draw GIS state-time curve, current-time curve, distance-time curve and speed-distance curve.

6. Show 12 GIS port status of common and graphite GIS.

Ⅲ. Technique index

1) Time measuring:

Number of ports of GIS measured :≤12

Range of the setting time during the measuring course: >100 seconds

Resolution: 0.01ms
