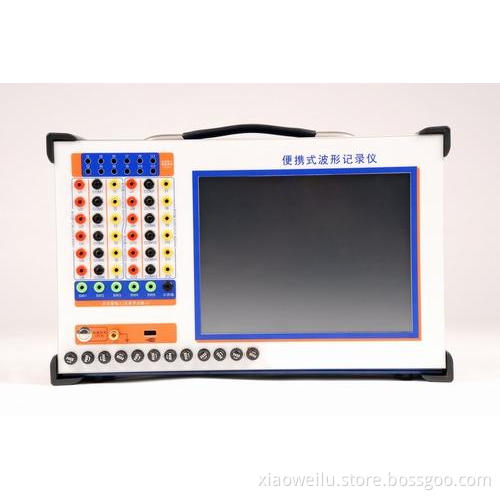

GDLB-601 Instantaneous Signal Recorder

1.1General introduction
GDLB-601 is an instantaneous signal recorder used for kinds of industry. It takes IPC as the core to sample and data process. It has 12.1 LCD to show, touch pad for operation, strong anti-jamming and easy operation.

1.2Functions
1. Sample isolation between channels completely.
2. The instrument software has waveform zoom, data statistics, spectrum transformer and wavelet transformer tools.
3. Lots of test template to make customers finish test rapidly.
4. All the data can be exported through U-disk or wireless network.
5. Automatic upgrade interface of the tester make it easy to get latest software package and test template.
6. 12.1 LCD to show, touch pad for operation.
7. Automatically makes WORD and EXCEL test reports.

1.3Technique parameters
1. Analog signal sample channels:12
2. Optional stalls: -450V~450V,-100V~100V,~10V~10V,-20mA~20mA
3.Sample error:
-450V~450V error<0.5V
-100V~100V error <0.2V
-10V~10V error <0.01V
-20mA~20mA error <0.02mA
4. Passive switch signal input interface:5
5. Work condition:
Power supply: AC220V10 
Frequency: 50Hz
Power consumption: ≤60w
Temperature: 040C
Humidity: ≤90RH
Size: 448260150 mm
Weight :<10kg
