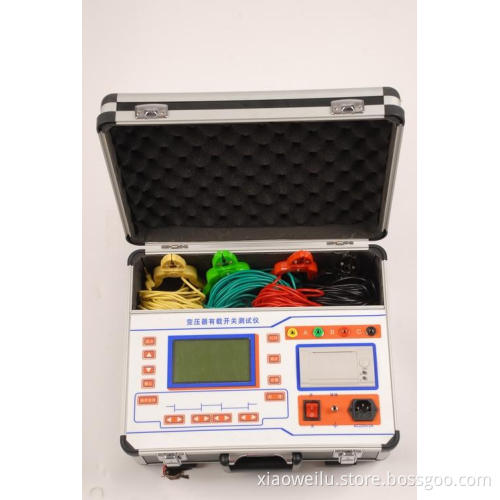

GDKC-2000 Transformer Load Voltage Adjustment Switch Tester

Get Latest Price

Payment Type:: T/T, L/C, D/A

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Payment Type:	T/T,L/C,D/A
Incoterm:	FOB
Transportation:	Ocean,Land,Air

Product Description

1.1 General introduction

The tester can record switch operation waveform in overall process. The longest time is 6.4s.It can test various parameters such as transition waveform, transition time, transition resistance and three phase synchronization one time and analyze results automatically. It has power-off protection, over-voltage protection, perpetual clock and high-speed printing.

1.2 Technique index

1. Three way independent test power, the maximum output current is 0.5A.

2. Processing part: 80C320 high speed 8 digit microprocessor High speed A/D converter, the 3.Maximum sampling rate can reach 400KHz

4. Tester set sampling rate:10~20KHz

5. Maximum save time of single waveform:6.4s

6.Transition resistance measuring scope:0~40Ω

7.Measuring precision:△≦10%

8.Power supply: 220V±10% power:200W

9. Size: 410*320*260mm3

10. Weight: 20kg
