Product Description

1.1 Introduction

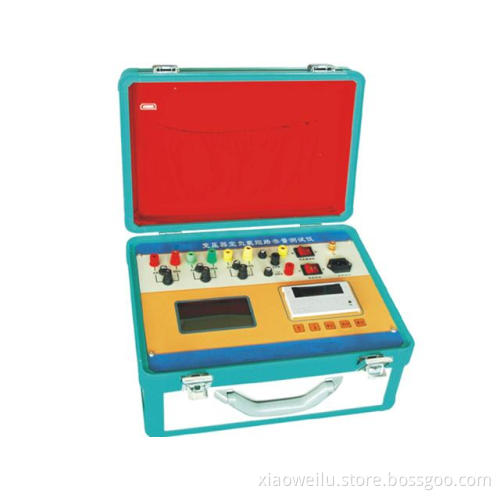

GDKF is a full automatic tester for load characteristic testing of power transformer. It is small, light and easy to use. Large size LCD used to display the test result. All the test result can be saved in the tester and printed by the micro-printer internal the tester.

1.2 Function

1) RMS value measurement for , and

2) Compute the RMS value for , and based on average value of the three voltage

3) Current measurement for , and

4) No load losses and Load losses measurement

5) Excitation current in no load condition

6) Impedance voltage

7) Impedance in short current

8) Test range from 30KVA to 2.5MVA in single unit.

9) Add PT and CT in separate for the tester will extend its test range.

1.3 Technique Index

1) Measurement range for current is 0.1A to 60A. The maximum error are less then 0.3%
