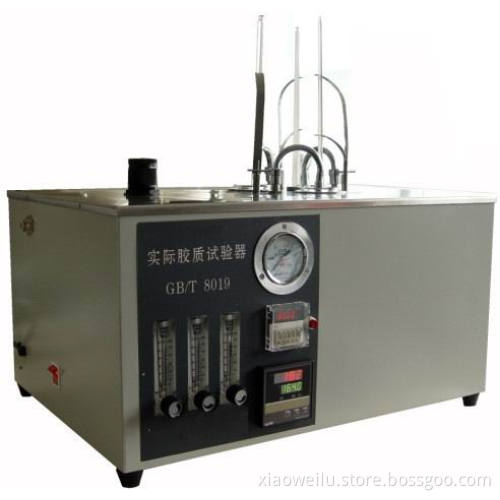

GD-8019 Existent Gum Tester

Purpose:

The instrument is designed and made as per GB/T8019 [Test Methods for Existent Gum of Vehicle Gasoline and Aviation Fuels (Jet Evaporation Methods)". It is suitable to determine existent gum of vehicle gasoline, aviation gasoline, volatile distillate, and aviation turbine fuels during tests.

Technical parameters:

1. Power supply: 220V±10%, 50Hz; 2.5kW;

2. Evaporation bath type and size: aluminum block bath, φ260×130mm;

3. Holes for testing: 3 pieces

4. Size of holes for testing cylinder: φ51×70mm;

5. Working temperature: 160 to 165 ℃;

6. Temperature controlling methods: automatic temperature controlling;

7. Temperature display: Digitally displayed;

8. Flow rate display: By a flow meter;

9. Working pressure for decompression valve: 0.035 MPa.

10. Gas source: Compressed air>110 L/min;

11. Size: 550×370×335mm;
