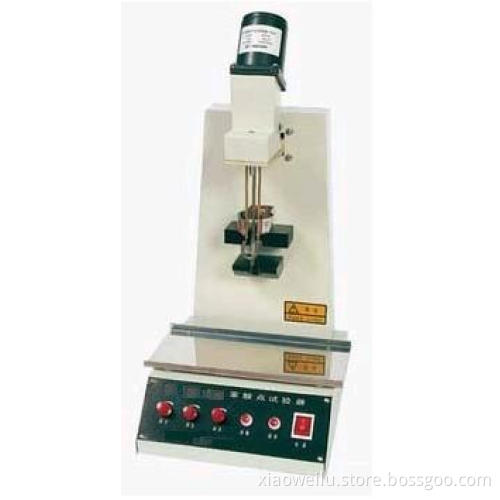

GD-262 Aniline Point Tester

Feature

electric heater

A teless speed regulation motor

Automatically detect and print

Purpose

The instrument is designed and made as per the National Standard GB/T262 [Test Methods for Aniline Point of Petroleum Products". It is suitable to determine the lowest temperature when a light petroleum product sample and the same volume of aniline dissolve with each other and become a single liquid phase. The lowest temperature is the aniline point of the sample.

The instrument uses an electric heater to heat sample, adjusts controlling temperature manually, and stirs sample using a stepless speed regulation motor. It can detect end point automatically and make alarm using sound and light. It is reliable, convenient and accurate.

Technical parameters

1. Power supply: AC 220V±10%, 50 Hz;

2. Measurement range: room temperature~150℃;

3. Stirring speed: 0~1200 r/min;

4. Heating power: 25 W;

5. Size: 360mm×250mm×545mm;
