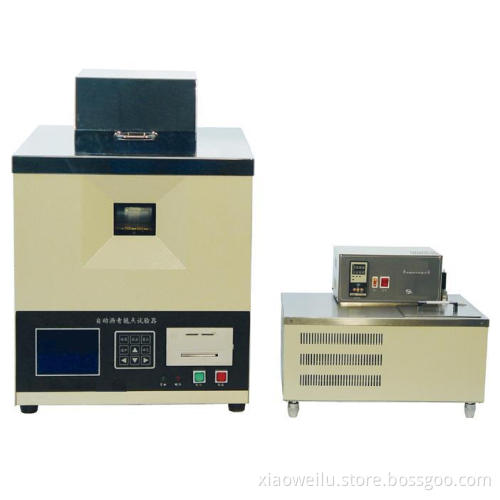

GD-0613A Automatic Bitumen Breaking Point Tester

Get Latest Price

Payment Type:: T/T, L/C, D/A

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Productivity:	100 sets compactor per year
Payment Type:	T/T,L/C,D/A
Incoterm:	FOB
Certificate:	ISO
Transportation:	Ocean,Land,Air

Product Description

Purpose:

The instrument is designed and made as per T0613 [Asphalt Breaking Point Test (Fraass Methods) in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine Fraass Breaking Point of bituminous materials.

The instrument can make determination for 3 pieces of samples at the same time, and calculate the average value of three test data. The instrument uses computer to control cooling rate and the instrument is equipped with a printer to print out test data and a RS232 output port.

Technical parameters

1. Power supply: AC 220V±10%, 50 Hz;

2. Cooling mode: by water;

3. Cooling rate: 1℃±0.5℃/min;

4. Temperature measurement range: -27℃~25℃;

5. Temperature measurement error: ±0.5℃;

6. Size of steel sheet: 41×20×0.15(mm);

7. Sample quantity: it can make determination for 3 pieces of samples at the same time;

8. Ambient temperature: room temperature~+30℃;

9. Relative humidity: ≤85%;

10. Total power consumption: not more than 450 W;
