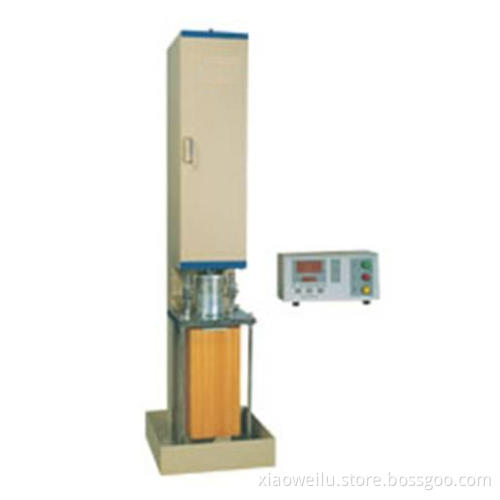

GD-0702A Marshall Electric Compaction Tester

Get Latest Price

Payment Type:: T/T, L/C, D/A

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Payment Type:	T/T,L/C,D/A
Incoterm:	FOB
Certificate:	ISO
Transportation:	Ocean,Land,Air

Product Description

Purpose:

The instrument is designed and made as per T0702 [Bituminous Mixture Test Sample Making Methods (Compaction Methods)" in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. The test sample made by this instrument is in accord with test requirements for test sample stipulated in the Industry Standard JTJ 052 T0709 [Bituminous Mixture Marshall Stability Test". It is a special instrument to make test sample for bituminous mixture Marshall Test.

Characteristics: It is suitable for both standard compaction test (use cylinder of 101.6 mm in diameter, 63.5 mm in height), and large compaction test (use cylinder of 152.4 mm in diameter, 93.5 mm in height).

Technical parameters

1. Weight of hammer: 4536g±9g;

2. Drop height of hammer: 457mm±1.5mm;

3. Compaction speed: 60±5 times/min;

4. Compaction times: it can be preset in the range of 0~99 times; The preset times can be stored;

5. Power supply: AC 220 V±10%, 50 Hz;

6. Power consumption: 370 W;

7. Test mold:

(1) 101.6 mm in diameter, 63.5 mm in height (Standard);

(2) 152.4 mm in diameter, 93.5 mm in height (Large);
