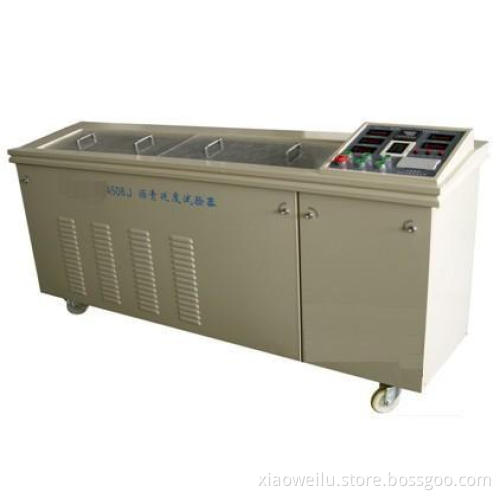

GD-4508J Asphalt Ductility Tester

Get Latest Price

Payment Type:: T/T, L/C, D/A

Incoterm:: FOB

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Payment Type:	T/T,L/C,D/A
Incoterm:	FOB
Certificate:	ISO
Transportation:	Ocean,Land,Air

Product Description

The instrument is designed and made as per the National Standard of People`s Republic of China GB/T4508 [Test Methods for Ductility of Petroleum Asphalt", and T0605 [Asphalt Ductility Test" in the Industry Standard of People`s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine the length of asphalt when it is elongated to broken at a specified temperature and speed as per GB/T4508 and JTJ052-T0605. It is indicated by cm.

I. Main technical characteristics

1. It adopts human oriented design theories. There is no thread rod, guide rail, and other device in the test bath, so it is convenient to install sample. It adopts the latest design of driving part, so it is stable, synchronous, even and without any shake. The ductility values can be precisely displayed. The maximum elongation length is 1.0 meter.

2. It adopts microcomputer controlling technologies. The test data can be automatically printed by a micro-printer. It is equipped with RS232 port, so it can communicate with a computer.

3. It has a force measurement device, so it can determine force for one sample during ductility test.

II. Main technical specification and parameters

1. Power supply: AC 220V (-5%~+10%), 50 Hz;

2. Measurement range: 1.0 m (±10 mm);

3. Heating power: 3200 W;

4. Temperature controlling range: 5~50℃, adjustable; Digitally displayed;

5. Temperature controlling accuracy: ±0.1℃;

6. Elongation speed: 10 mm/min, and 50 mm/min;

7. Measurement accuracy: ±1 mm;

8. Ductility display: It is controlled by SCM and digitally displayed after data processing.

9. Force measurement range: 0~100 N;

10. Force measurement accuracy: ±0.5 N;
