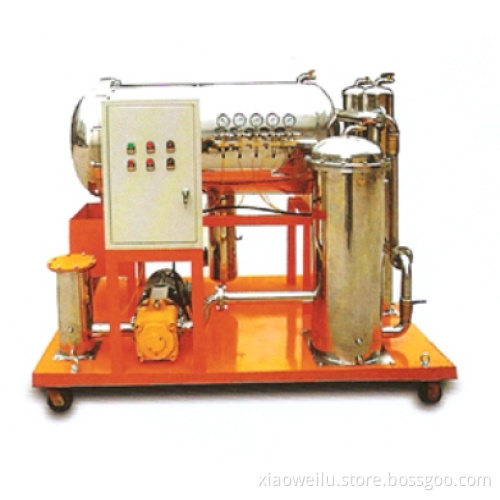

vacuum air pump set for transformer oil injecting

Get Latest Price

Payment Type:: T/T, L/C, D/A

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Productivity:	100 sets per year
Payment Type:	T/T,L/C,D/A
Incoterm:	FOB
Certificate:	CE
Transportation:	Ocean,Land,Air

Product Description

vacuum air pump set for transformer oil injecting

Feature:

1.vacuum pump adopt Busch, Leybold

2.Used for vacuum drying and vacuumization while injecting oil such as 220kv,500kv,800-1000kv

3.Limit vacuity not more than 3 pa

4.Vacuum degree intelligent setting.GIS port

Application:

It is mainly used for vacuum drying and vacuumization while injecting oil in high voltage electrical transformer such as 220 kv,500 kv,800 kv,100 kv. The host vacuum pump adopts import top grand, with working vacuity up to 10 pa limited vacuity to 1 pa and GIS interface is available according to customer requirement and vacuum degree intelligent setting . It features defend back suction, fast startup, quick pumping , stable performance and simple operation

Technical Parameters

Parameter		Type Unit	ZJ-70		ZJ-150	ZJ-300	ZJ-600		ZJ-1200
Power Supply			50Hz 380V 3-Phase 4-Wire (or as requested)
Power		KW	4	6.5		7	11	18.5
Limit Vacuity		Pa	≤3
Pumping Speed		L/S	70	150		300	600	1200
Pumping Level			2
Connection Diameter		mm	50				80
Size	Length	mm	1200		1300	1400	1600		1750
	Width	mm	950		1000	1100	1200		1300
	Height	mm	1500		1600	1700	1900		2100
Weight		Kg	300		400	500	1250		1560
