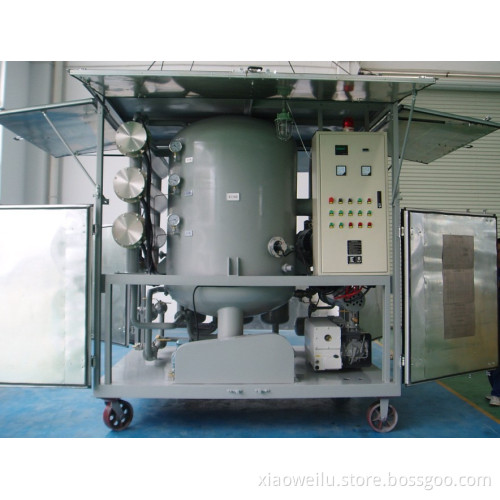

ZJA double vacuum oil purifier for low kinematic insulating oil

Get Latest Price

Payment Type:: T/T, L/C, D/A

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Productivity:	100 sets per year
Payment Type:	T/T,L/C,D/A
Incoterm:	FOB
Certificate:	CE
Transportation:	Ocean,Land,Air

Product Description

Feature

1.suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance

2.Mainly used for purify the oil used in not more than 500kv electricity.

3.Oil puncture voltage improve above 75 kv spherical electrodes

4.Filtering accuracy is 1 um

Application

Made with advanced techniques and innovative designs, the product is hailed as excellent in cost performance, its oil treatment techniques and overall performance are at leading position in china. Its features include high working vacuum ,fast oil filtering, and sound oil quality protection. It is mainly used for purification of oil for high voltage and extra high voltage electric facilities ,and mainly used for purify the oil used in <500 kv electricity. This series may include two types:regular closed tye and trailer mobile type. They are suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of big transformers

Technical Parameter

Item	Parameter		Type Unit	ZJA1.8KY	ZJA3KY	ZJA6KY	ZJA9KY	ZJA12KY	ZJA18KY
Technical Parameter	Flow Rate		L/H	1800	3000	6000	9000	12000	18000
	Working Vacuity		Pa	≤80
	Working Pressure		Mpa	≤0.35
	Temperature Range		℃	45-65
	Power Supply			50Hz 380V 3-Phase 4-Wire (or as requested)
	Total Power		KW	18+2.25	30+6	2X30+6.6	3X30+8.2	4X30+10	5X30+16.5
	Inlet/Outlet Diameter		mm	32 / 25	38 / 32	44 / 38	48 / 44	64 / 48	76 / 64
	Size	Length	mm	1200	1500	1870	1930	2160	2250
		Width	mm	950	1150	1250	1400	1600	1750
		Height	mm	1600	2000	2200	2460	2650	2650
	Weight		Kg	650	900	1200	1600	2200	3000
Oil Treatment Index	Breakdown Voltage		KV	70-75
	Water Content		ppm	3~5
	Gas Content		%	≤0.2
	Filtering Accuracy		µm	cx1~3
