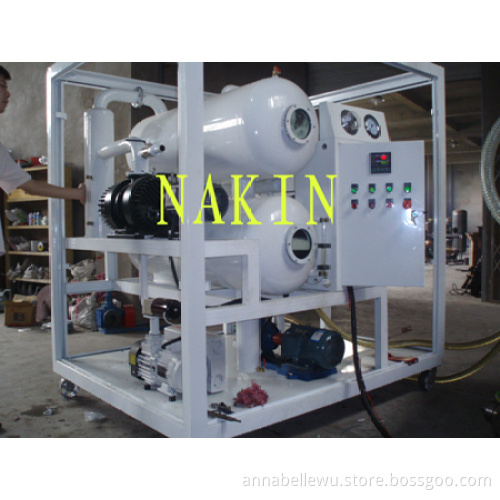

Oxydize Transformer Oil Cleaning Machine
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 per/month |
| Supply Ability: | 100 per/month |
| Incoterm: | FOB |
| Certificate: | CE |
Application:
Series TYA vacuum hydraulic oil regeneration is mainly for purifying unqualified lubricating oil, hydraulic oil, compressor oil, refrigeration oil and other industrial oils, this machine can rapidly separate water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil, restoring oil viscosity, flash point and performance. The treated oil can reuse again in various industrial equipments. It is widely applied in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc.
Features:
1. Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.
2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
3.Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.)
4. Automatic backwashing system, improving working efficiency
5. Advanced medium cooling system
6.High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical Parameters:
|
Index name |
Unit |
TYA-10 |
TYA-20 |
TYA-30 |
TYA-50 |
TYA-100 |
TYA-150 |
TYA-200 |
TYA-300 |
|
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
|
Working vacuum |
MPa |
-0.06~-0.095 |
||||||||
|
Working pressure |
MPa |
≤ 0.4 |
||||||||
|
Temperature range |
°C |
20 ~80 |
||||||||
|
Demulsifying value |
min |
≤15/min(GB/F7035) |
||||||||
|
Water content |
ppm |
≤100 |
||||||||
|
Gas content |
% |
≤ 0.1 |
||||||||
|
Cleanness |
|
≤ NAS 7 grade |
||||||||
|
Power supply |
|
380V 50HZ 3Ph (As per user`s option) |
||||||||
|
Working noise |
dB(A) |
≤65~80 |
||||||||
|
Heating power |
Kw |
36 |
40 |
45 |
60 |
80 |
110 |
145 |
160 |
|
|
Total power |
Kw |
38 |
42 |
47 |
65 |
96 |
124 |
157 |
178 |
|
|
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
|
|
Weight |
kg |
350 |
380 |
400 |
450 |
750 |
880 |
1100 |
1300 |
|
|
Dimension |
L |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1950 |
2100 |
|
W |
mm |
1000 |
1050 |
1050 |
1150 |
1150 |
1600 |
1600 |
1700 |
|
|
H |
mm |
1600 |
1600 |
1650 |
1700 |
1750 |
1950 |
1950 |
1950 |
|
Our Products List :
ZYD vacuum transformer oil purifier
ZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator
Contact us ,we will recommend the most suitable oil purifier to you.
CHONGQING NAKIN ELECTROMECHANICAL CO., LTD.
is dedicated to provide you the best solution for all kinds of industrial oil regeneration.
