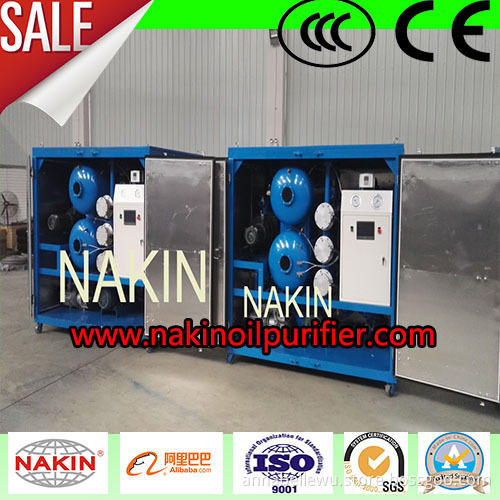

ZYM Movable vacuum transfomer oil purifier
CNNK ZYM Movable vacuum transfomer oil purifier adds Roots vacuum system, second stage of separating system to improve the efficiency of purification. It can remove free soluble water, carbon, free and dissolved gases, and particulate matters from insulating oil effectively and rapidly.
Series ZYM oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYM oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
Application:
According to user`s requirements, we developed Series ZYM mobile insulating oil purifier, this machine is mainly used for dealing with unqualified transformer oil, switch oil, mutual inductor oil, ZYM belong to Double-stage transformer oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil`s dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYM oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYM oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. The best advantage of ZYM is that can move long distance working in field.
Features:
1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car tyres,Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field
Technical Parameters:
|
Index name |
Unit |
ZYM-30 |
ZYM-50 |
ZYM-65 |
ZYM-100 |
ZYM-150 |
||
|
Flow rate |
L/H |
1800 |
3000 |
4000 |
6000 |
9000 |
||
|
Working noise |
dB(A) |
<=65-85 |
||||||
|
Heating power |
Kw |
30 |
30 |
78 |
95 |
110 |
||
|
Total power |
Kw |
35.5 |
37.5 |
87 |
104 |
121 |
||
|
Working vacuum |
MPa |
-0.08--0.099 |
||||||
|
Working pressure |
MPa |
<0.4 |
||||||
|
Temperature range |
C |
20 -80 |
||||||
|
Dielectric strength |
KV |
> 70 |
||||||
|
Water content |
ppm |
< 3 |
||||||
|
Gas content |
% |
< 0.1 |
||||||
|
Particles size |
u |
<1 |
||||||
|
Power supply |
|
380V 50HZ 3Ph (As per user`s option) |
||||||
It based on regular ZYD, plus the single axle trailer. It is special designed for outside field operation.

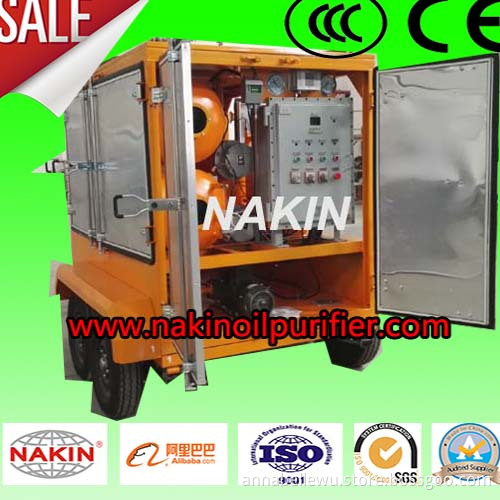

Single axle trailer type: mounted on chassis with 2 pneumatic tyres, covered steel shield. Bridge shock absorber, braking system, rear lights, tow-eye etc
Other main products
Series BZ Insulating Oil Recycling Machine
Series TYA Lubricating Transformer Oil Purifier
Series TY Turbine Transformer Oil Filtration Machine
Series JZS/JZC Engine Oil Recycling Machine
Series TPF Edible Oil Reclamation Machine
Series TYK Phosphate Ester Fire-resistant Transformer Oil Filter
Series IIJ-II Insulating Oil Dielectric Strength Tester
Series NKEE Oil Moisture Content Sensor
user`s options:
1.Trailer type with fully closed for protecting oil purifier machine(Waterproof and dustproof)
2.Choosing different kinds vacuum pump, oil pump, and electric parts.
3.Anti-explosion (EX type) electric parts.
4.Equips moisture sensor and dielectric strength tester on the machine.
5.Filter elements for different requirements on filtering precision
6.Stainless steel material for oil purifier body.
