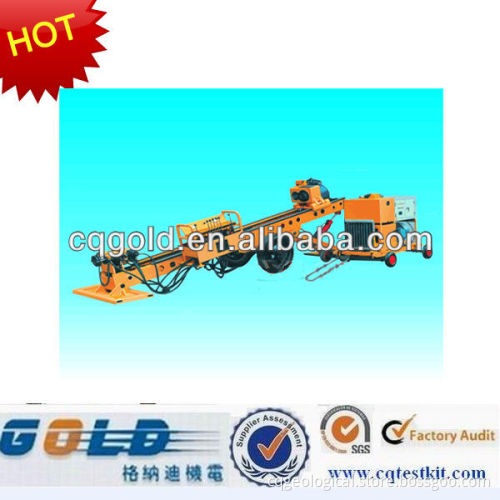

FKW-12 Speed Fluid Drive Top-head Large-torque Easily Directional Drilling Machine

Get Latest Price

Payment Type:: T/T, L/C, D/P, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Productivity:	300 sets per month
Supply Ability:	300 sets per month
Payment Type:	T/T,L/C,D/P,Western Union
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Land,Air

Product Description

Specifications

FKW-12 directional drilling machine is mainly used in laying out underground pipes and lines withought destructing

APPLICATIONS:
FKW-12 directional drilling machine is mainly used in laying out underground pipes and lines withought destructing existed various buildings such as square or ground buildings of airport runway, roadway and high way, also in soil and rock anchor engineering construction..

FEATURES:
1 Implementing hydraulic transmission, advance design of transmission system, main hydraulic components are made by world famous hydraulic company, to ensure that the hydraulic system is stable and reliable.
2 Main body is separated from power pack, which will lighten the drill body, equipped with wheeled structure, easy moving.
3 Speed fluid drive top-head, large-torque, easily directional drilling.
Multiplier-speed feed system of oil cylinder and chain, the top-head stroke is 3.3 meters, high efficiency.
4 Equipped with holder and unscrewer to untighten the threads, reduce labour strengthness, increase work efficiency.

Technical Specifications

Max feed force/draw back force(KN)		89/120
Max draw back diameter(mm)		400
Max draw back lenght(m)		300
top-head feed stroke (mm)		3300
Top-head speeds(r/min)	SeriesI	0-100
	SeriesII	0-33
Top-head max torque (N.m)	SeriesI	1680
	SeriesII	5000
Fedd/draw back speeds(m/s)		0.07-14/0.05-0.1
Power (kw)		37
Rated pressure of hydraulic system(Mpa)		20
Drill body Overal dimensions(LWH)mm/weight (kg)		490014001255/1200
Power pack Overal dimensions(LWH)mm/weight (kg)		155512551355/ 700
