Tunnel Crawler Drill Rig
- Payment Type:
- T/T, L/C, D/P, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 sets per month |
| Supply Ability: | 300 sets per month |
| Payment Type: | T/T,L/C,D/P,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Specifications
drilling large diameter pile for building, skyscraper, dam, harbor.

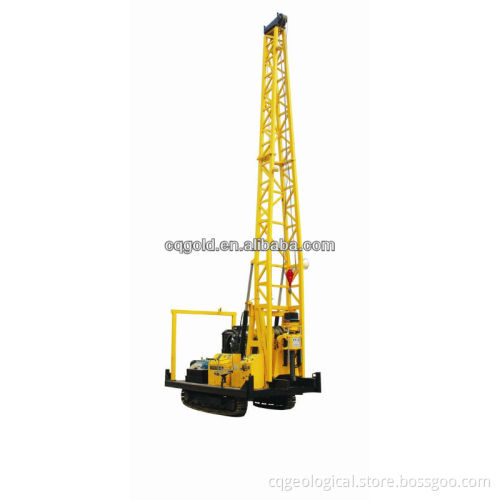

Tunnel Crawler Drill Rig
Technical Specifications
|
Drilling depth
|
m
|
100
|
250
|
300
|
600
|
|||||||
|
Drilling DI
|
mm
|
300
|
200
|
150
|
75
|
|||||||
|
Open hole DI
|
mm
|
300
|
||||||||||
|
End hole DI
|
mm
|
75
|
||||||||||
|
Drilling rod
|
mm
|
Φ60
|
||||||||||
|
Drilling angle
|
|
90°-65°
|
||||||||||
|
Rotary Spindle
|
||||||||||||
|
Spindle forward speed
|
r/min
|
30-1050
|
||||||||||
|
Spindle reverse speed
|
r/min
|
29-137
|
||||||||||
|
Spindle stroke
|
mm
|
560
|
||||||||||
|
Spindle inner diameter
|
mm
|
96
|
||||||||||
|
Spindle lifting capacity
|
KN
|
60
|
||||||||||
|
Main Winch ( drive hydraulic system)
|
||||||||||||
|
Single line lifting speed
|
m/min
|
0-45
|
||||||||||
|
Hug floodgate belt width
|
mm
|
90
|
||||||||||
|
Tightrope diameter
|
mm
|
14
|
||||||||||
|
Hoist single line lifting capacity
|
KN
|
40
|
||||||||||
|
Roller diameter
|
mm
|
200
|
||||||||||
|
Roller cubic measure
|
m
|
30
|
||||||||||
|
Minor Winch ( drive hydraulic system)
|
||||||||||||
|
Roller diameter
|
mm
|
140
|
||||||||||
|
Wire rope diameter
|
mm
|
6
|
||||||||||
|
Capacity roller
|
m
|
450
|
||||||||||
|
Mud pump
|
||||||||||||
|
Horizontal Triplex BW-250 mud pump
|
||||||||||||
|
Displacement
|
L/min
|
250
|
||||||||||
|
Work pressure
|
Mpa
|
7
|
||||||||||
|
Water inlet caliber
|
mm
|
75
|
||||||||||
|
Water to exit caliber
|
mm
|
50
|
||||||||||
|
Gear Oil pump
|
||||||||||||
|
Duplex gear oil pump CBF-F63/25
|
||||||||||||
|
Front displacement,pressure
|
|
63mL/r 20Mpa
|
||||||||||
|
Behind displacement,pressure
|
|
25mL/r 20Mpa
|
||||||||||
|
Drilling rig Power
|
||||||||||||
|
Diesel engine
|
Hp
|
R4105ZD 76HP
|
||||||||||
|
Electric motor
|
KW
|
Y180L-4 22KW
|
||||||||||
|
Crawler chassis
|
||||||||||||
|
moving speed
|
2Km/H
|
|||||||||||
|
motor work pressure
|
20Mpa
|
|||||||||||
|
Displacement
|
1634ml/rev
|
|||||||||||
|
chassis loading
|
3T
|
|||||||||||
|
crawler chassis length
|
2.6m
|
|||||||||||
|
motor oil displacement
|
50L/min
|
|||||||||||
|
crawler chassis width
|
0.35m
|
|||||||||||
|
Max high crawler
|
0.508m
|
|||||||||||
