Mine Core Drilling Machine
- Payment Type:
- T/T, L/C, D/P, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 sets per month |
| Supply Ability: | 300 sets per month |
| Payment Type: | T/T,L/C,D/P,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Specifications
drilling large diameter pile for building, skyscraper, dam, harbor

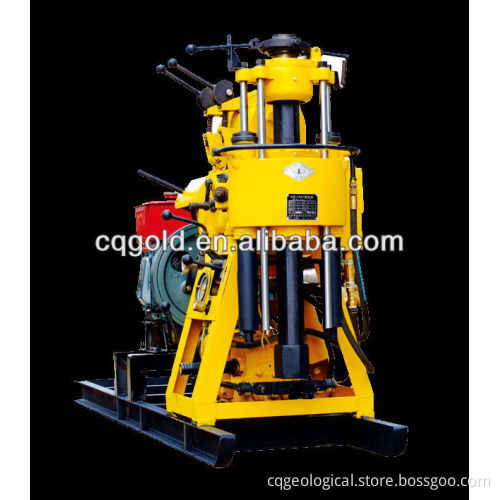

Mine Core Drilling Machine
Geology general check exploration,Earth physics exploration,Road and high layer building ground survey,Well,Blast opening et cetera drilling engineering
|
Specifications
|
||
|
Unity machine parameter
|
||
|
Drilling depth
|
130m
|
|
|
Maximum open hole caliber
|
260mm
|
|
|
End hole caliber
|
75mm
|
|
|
Drill rod caliber
|
50mm
|
|
|
Drilling angle
|
90~75
|
|
|
Drill weight (No include power)
|
510 560kg
|
|
|
Unity machine dimensions
|
2.5×1×1.3 2.5×0.9×1.3m
|
|
|
Spindle
|
||
|
spindle speed
|
142\285\570r/min
|
|
|
Spindle stroke
|
450mm
|
|
|
Hoist
|
||
|
Max.single line hoisting capacity
|
960kg
|
|
|
Single line lifting speed
|
0.41\ 0.82\ 1.64m/s
|
|
|
Tightrope caliber
|
27m
|
|
|
Mud pump
|
||
|
Type
|
Horizontal single urn twin-action
|
|
|
Displacement
|
95/77L/min
|
|
|
Diesle engine
|
s1105 18HP
|
|
|
Electric motor
|
Y160M-4 11kw 1440r/min
|
|
|
Maximum pressure
|
1.2Mpa
|
|
|
Work pressure
|
0.7Mpa
|
|
|
Water inlet caliber
|
30mm
|
|
|
Water to exit caliber
|
25mm
|
|
|
Triangle conveyer belt
|
B1575mm
|
|
