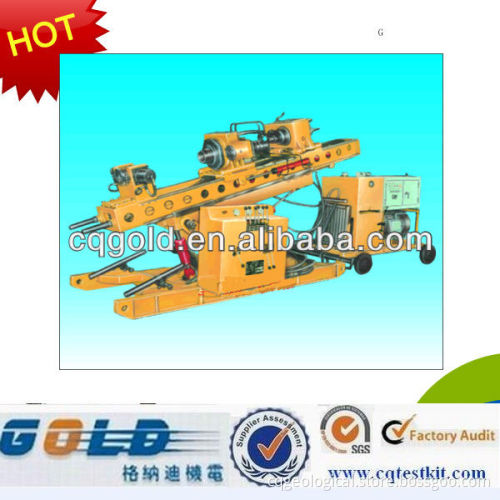

MGY-100A Soil And Rock Anchoring Hole Prevention Geology Disaster

Get Latest Price

Payment Type:: T/T, L/C, D/P, Western Union

Incoterm:: FOB

Min. Order:: 1 Pack/Packs

Min. Order:: 1 Pack/Packs

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Productivity:	300 sets per month
Supply Ability:	300 sets per month
Payment Type:	T/T,L/C,D/P,Western Union
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Land,Air

Product Description

Specifications

Drilling machine is suitable for supporting in deep foundation pit of hydroelectric powerstation

APPLICATIONS:

MGY-100A anchoring chilling machine is an important project of "the Ninth five" of the state. Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric powerstation, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.

FEATURES:
Hydraulic top head, hydraulic powerstation separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
Large powered, top-drive head has big torque and pull force, wide rotary speed range.
Holder and unscrew device, working efficiently, labor saving.
2-tier guiding rail, easy to find hole position.

Technical Specifications

Hole dia(mm)	Φ110-Φ200	Drilling depth(m)	100-60
Hydraulic power pack type		Variable(Electric motor)
Power model		Y200L2-2	CC490Q
Power and ratings		37Kw/2950r/min	36Kw/2800r/min
Hydraulic system pressure(Mpa)		20
A-top drill head speeds(r/min)	Ⅰseries	0-100	0-95
	Ⅱ series	0-30	0-29
) A-top drill head torque(Nm)	Ⅰseries	1600
	Ⅱ series	5000
B-top drill head speed(r/min)		0	10
B-top drill head torque(Nm)		6400
lift/feed speeds (m/s)		0-0.16/0-0.21
Max pull force/Max push force(N)		80000/57000
Max feed stroke (mm)		2000
Drilling angle(°)		Elevation20°Depression angle100°
mast Raised height horizontally(mm)		300
Drill body weight (kg)		1800 1800(approximately)
Powerpack weight(kg)		700 700(approximately)
Mount type		Plate mounted,drill body separated from power
