Grouting Anchoring Drilling Machine
MAIN SPECIFICATIONS
1.GENERAL DESCRIPTION

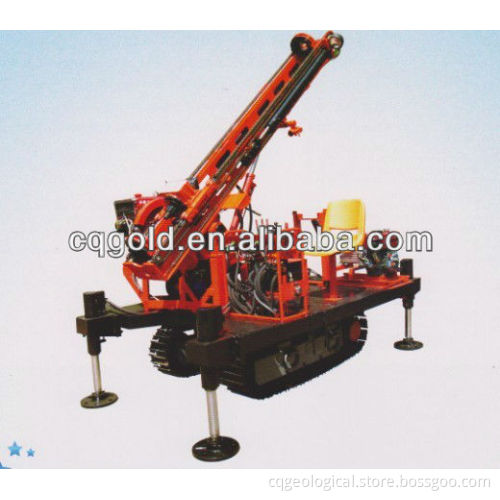

MGJ-50L crawler drill rig for anchoring and jet-grouting is a type of integration of crawler, mud pump and control panel based on original MGJ-50 drill rig for anchoring and jet-grouting.
The drilling rig is mainly used in soil and rock anchoring, consolidation of road base, dam base and retaining wall, and blasting hole drilling and jet-grouting.
2.The drill rig features:
1). The drill rig is with mechanical transmission and hydraulic feed, drill hole dia. is mainly 110-130mm(can reach 180mm), drilling capacity 60 m, can drill at any angle between horizontal and vertical.
2). Long feeding stroke reaching 2300 mm with 2 m drill rod.
3). Using with rotation drilling and percussion –rotation drilling, drill efficiently.
4). Support cylinder, it is easy to adjust the angle of the mast.
5). With crawler, it is easy and fast to find out the drill hole position.
Technical Specifications
| top-drive head water well drilling rig | ||
|
(Diesel engine)
|
ZS1115 15 kW 2200 r/min | |
|
Base pre-meter |
||
|
(Drilling hole dia)
|
130 mm mainly (can reach 180 mm) | |
|
(Drilling capacity)
|
60 m | |
|
(Drilling angle)
|
any angle between vertical and horizontal | |
|
(Drill rod:)
|
Φ50 mm or Φ73mm; length 2 m | |
|
(Rated pull force)
|
22 kN | |
|
(Rated push force)
|
14.6 kN | |
|
(Lifting speed)
|
0.259 m/s | |
|
(Max. torque)
|
2984N·m | |
| Top-drive head | ||
|
(Type)
|
mechanical top-drive head | |
|
(Stroke)
|
2300 mm; 1500 mm (shorter mast type); 800 mm (the shortest mast type) | |
|
(Speed)
|
48; 88; 162; 281 r/min, reverse speed: 39 r/min | |
| Oil pump | ||
|
(Model)
|
CBK1020/8-396R | |
|
(Flow)
|
20+8.1 mL/r | |
|
(Rate speed)
|
1500 r/min | |
|
(Max. pressure)
|
8MPa | |
|
(Working pressure)
|
16MPa | |
| crawler | ||
|
(Model)
|
DP101CT | |
|
(Max. tow force)
|
27.5 KN | |
|
(Crawling speed)
|
1.17 km/h | |
|
(Crawling angle)
|
less than 30° | |
| Mud pump | ||
|
(Model)
|
BW120QF | |
| Overal dimension | ||
|
(Drilling vertical hole)
|
L ×W×H 3130×1920×4090 | |
|
Drilling horizontal hole (transportation state)
|
L ×W×H 3550×1920×1820 | |
| Weight of drill body | ||
|
(excluding the power unit)
|
900Kg | |
|
(Whole weight)
|
2850 kg | |
