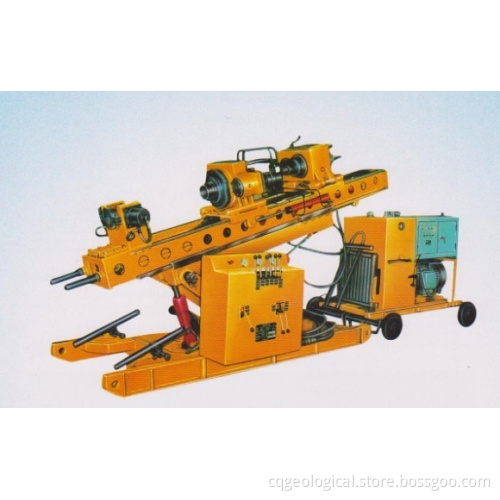

ANCHORING DRILLING MACHINE

Place of Origin

Chongqing, China (Mainland)

Brand Name

GOLD

Model Number

MGY-100A

Cutting Depth

100-60m

Diameter of Blade

110-200mm

Rotary Speed

1-100r/min

Hydraulic system pressure(Mpa):20

Powerpack weight(kg):700(approximately)

FOB Price:

US $ 1-3/ Set

Minimum Order Quantity:

1 Set/Sets

Port:

shanghai

Packaging Details:

wooden case

Delivery Time:

15days

Payment Terms:

L/C,T/T

Supply Ability:

20 Set/Sets per Month

APPLICATIONS:

MGY-100A anchoring chilling machine is an important project of "the Ninth five" of the state. Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric powerstation, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.

2. FEATURES:
Hydraulic top head, hydraulic powerstation separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
Large powered, top-drive head has big torque and pull force, wide rotary speed range.
Holder and unscrew device, working efficiently, labor saving.
2-tier guiding rail, easy to find hole position.

Technical Specifications
