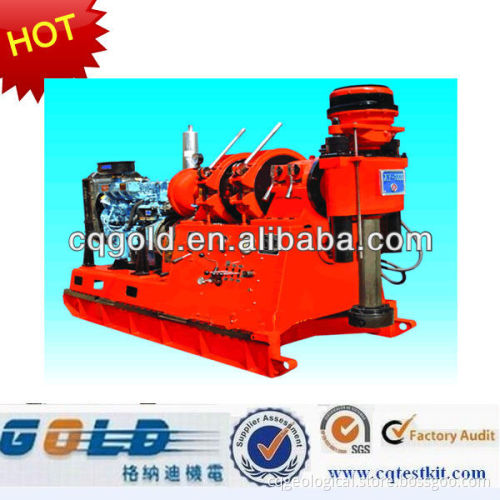

XY-1000 Large Dia Hole Water Well Engineering Geology Drilling Spindle Type Of Core Drilling Machine

Get Latest Price

Payment Type:: T/T, L/C, D/P, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Productivity:	300 sets per month
Supply Ability:	300 sets per month
Payment Type:	T/T,L/C,D/P,Western Union
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Land,Air

Product Description

Specifications

XY-1000 spindle type of core drilling machine is suitable for engineering geology drilling, hydrogeology drilling, water well

Applications & Features:

XY-1000 spindle type of core drilling machine is brand new products which is developed and designed newly based on current thousand meters sereies of drilling machine.

It is suitable for drilling large dia. hole and small dia. hole core drilling with diamond bit and carbide bit, also suitable for engineering geology drilling, hydrogeology drilling, water well drilling and large dia. pile hole drilling. It has features of reasonable arrangement, good quality, light weight, big capability, wide performance and good exchangability etc.

Drilling depth (m)		1000
(r/min) Spindle speeds (r/min)	forward	87; 160; 230; 270; 334; 500; 710; 1030
	reverse	72; 220
Max.toque of spindle (Nm)		4050
Spindle stroke (mm)		600
Spindle inner dia. (mm)		96
Spindle pull/push force(kg)		10000/7500
Hoist max. lifting force with single rope		4500
Hoist lift speed with single rope (the third layer)(m/s)		0.69; 1.27; 1.81; 2.64
Hoist wire rope dia. and capacity (m)		17.5(170kg/cm2) 17.5(170kg/cm2)wire rope capacity 110 m
		18.5(170kg/cm2) 18.5(170kg/cm2)wire rope capacity 90 m
Workable speed of water brake (r/min)		700- 1800
Balance speed of water brake(single rope)/balance load(single rope)		3-8m/s/45kN
Hydraulic system		(32+12)L/min: 80kg/cm2 (32+12)L/min twin-gear pump,pressure:80kg/cm2
Driving stem		89×79×6000 mm Hexagonal kelly 89×79×6000 mm
Power unit	Electric motor	Y225-4 37Kw 1480r/min
	Diesel engine	R4105G54 42Kw 1500r/min
Weight (excluding power unit)		2180kg
Max. detachable subassembly		320kg
Overal dimesion (L×W×H)(mm)		2920×1100×1840
