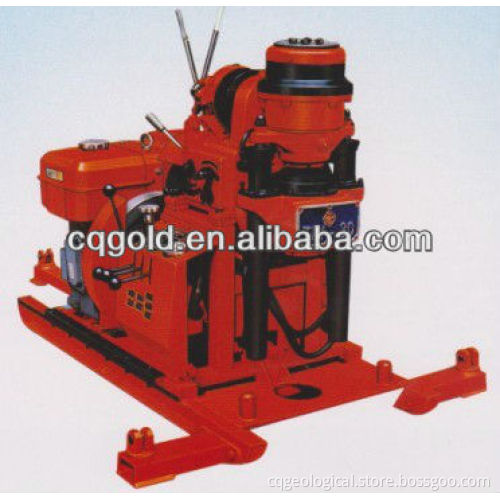

Shallow-hole Drilling Machine TPY-30 Exploration Drilling Rig
APPLICATIONS
TPY-30 drilling machine is a type of shallow-hole drilling machine for exploration, it is suitable for drilling in soil, sand soil and medium harden rock drilling. It can be used not only in both explosion hole drilling for petroleum survey and core drilling for engineering geological exploration, but also in foundation exploration of industrial and civel buil dings, and grout hole drilling for reservoir and dam.
FEATURES:
Light, good detachability, easy moving, suitable for mountainous area.
Mechanical transmission, hydraulic feed, equipped with hydraulic chuck, increase drilling efficiency, reduce labour strengthness.
Hydraulic retraction to let the drill body away from the hole, easy lifting and lowering the drilling tools.
Perfect performances, simple and compact design, easy operation.
Largely powered, reasonable speed range, suitable for various drilling methods.
Equipped with light and detachable aluminium alloy derrick.
Technical Specifications
|
Drilling capacity
|
Hole dia
|
Φ75mm,Φ110mm
|
|
|
Depth
|
25m,30m
|
||
|
Rotation table speeds |
110;234;332
|
||
|
Rotation table output torque |
0.326
|
||
|
Max pull force
|
20
|
||
|
Feed stroke
|
350
|
||
|
Retraction stroke
|
220
|
||
|
Single rope max lift force
|
3.43
|
||
|
Hoisting speeds (the second layer)
|
0.58;1.15;1.78
|
||
|
Oil pump
|
CBW-F203-AFPL
|
||
|
Drill body Weight (excluding power unit) (kg)
|
240
|
||
|
Overal dimensions(L*W*H)
|
1270*624*890
|
||
|
Power unit
|
Diesel engine
|
Model
|
R185A
|
|
Power
|
6.25
|
||
|
Speed
|
2400
|
||
|
Electric motor |
Model
|
Y132S1-2
|
|
|
Power
|
5.5
|
||
|
Speed
|
2900
|
||
