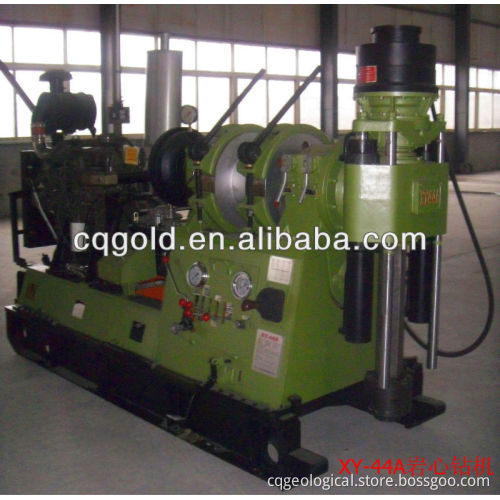

XY-44A Mineral Core Exploration Drilling Machine
1) Mineral exploration drill
2) Drill depth: 600-1400m

XY-44A Mining Exploration Drilling Rig is a multi-purpose spindle diamond core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. Julong core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition

Application: Core Drilling, Engineering Geology Exploration, Hydrology and Water Well Drilling, as well as Large Diameter Foundation Piles Construction

Machine parameter

Unity machine parameter
Drilling depth	600-1400m
Max open hole caliber	300mm
End hole caliber	75mm
Drilling Rod diameter	60mm
Drilling angle	90°~65°
Drill rig moving stroke	450mm
Spindle
spindle speed ( Diesel Engine)	Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min
spindle speed ( Diesel Engine)	Reverse 65 201r/min
spindle speed ( Electric Motor)	Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min
spindle speed ( Electric Motor)	Reverse 54 167r/min
Spindle stroke	600mm
Spindle max. pressure force	90KN
Spindle inner diameter	96mm
Lifting capacity	120KN
Main Hoist
Max.Single line lifting capacity	45KN
Max.Single line lifting speed	0-45m/s
Wirerope caliber	17.5-18.5mm
Hoist capacity of wireline	90-110m
Roller Diameter	140mm
Wirerope Diameter	6mm
Wirerope length	450m
Mud pump
Type	BW-250
Displacement	250 L/min
Work pressure	80kg/cm²
Water inlet pipe diameter	75 mm
Water outlet pipe diameter	50 mm
Power
Diesel engine	YC4E135-1 100KW
Electric motor	Y225S-4 37KW
