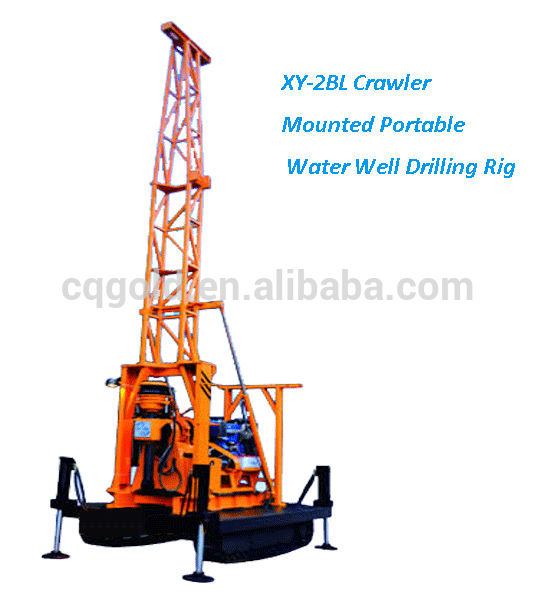

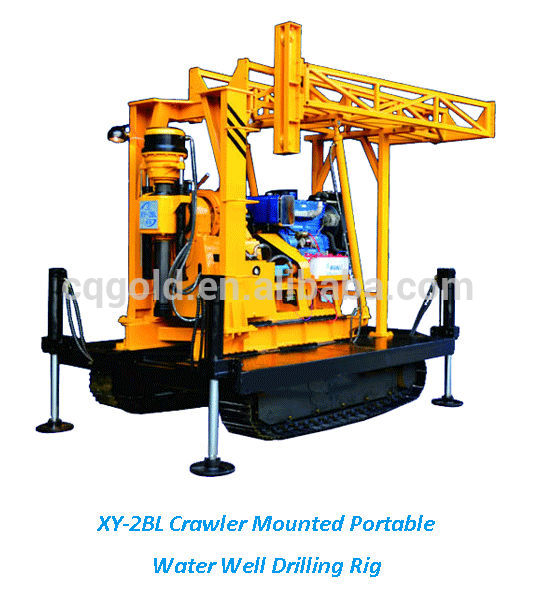

XY-2BL Crawler Mounted Core Drilling Rig

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Specifications

XY-2BL rig isintegrating drilling rig, crawler, mud pump, console rack and other devices into the integral one.

XY-2BL rig is developed based on our XY-2 core drilling rig , integrating drilling rig, crawler, mud pump,

console rack and other devices into the integral one. It is mainly targeted at the shallow-medium hole

of geology core drilling, and where the mobility is important. It is modular and integral drilling rig.

1. Integrated crawler, rig, mud pump, console racks;
2. Crawler, the whole support rigs and tower with ups and downs are controlled by the hydraulic
system of the rig, easy to operate and transport;
3. The whole set of equipment can move to relocate, improve drilling efficiency, reduce labor intensity;
4. The tower has the function of ups and downs , folding , easy walking and transportation;
5. Rig with more (8 block) the speed of progression and reasonable speed range, and the relatively
large low-speed torque, wide range of application.
6. Rig has two reverse gear speeds, easy to deal with incidents;
7. Rig has longer feed stroke as long as 600mm, will help improve drilling efficiency and reduce
blocking drill, burning accidents;
8. Rig has double oil pump, less power consumption, lower oil temperature of hydraulic system;
9. Rig has few control levers, rational layout, flexible and reliable operation;
10. In addition there is a normally closed upper hydraulic chuck on , but also with lower mechanical
man-powered chuck.

1	Drilling depth (NQ drill rod)		Approximately 500m
2	Spindle speed		Forward	57; 99; 157; 217; 270; 470; 742; 1024
			Reverse	45; 212 r/min
3	Spindle Maximum torque		3200 N·m
4	Spindle max pulling force		60 KN
5	Spindle stroke		600 mm
6	Max. lifting force of the hoist with single rope		30 KN
7	Inner diameter of the spindle		96 mm
8	Retraction distance		305 mm
	Retraction distance for the host drill rig		330 mm
	Retraction distance for both drill rig and tower		160 mm
10	Oil pump		SCB32/12 double gear pump
11	Power unit	engine power	30 KW 1500 r/min
		electric motor	22KW 1470 r/min
12	Crawler maximum walking speed		1.2 km/h
13	Crawler Climbing capacity		25°, no more than 25 °
14	Tracked Ground pressure		0.042 MPa
15	Rig height		8 m
16	Hook load of the tower		29.4 kN
17	Max.static load of crown block beam		58.8 kN
18	Quantity of pulley		2
19	Angle range of tower ups and downs		0°~ 90°
20	Rig Dimensions ( tower horizontal position )		(LWH) 4450×2166×3080 mm
21	Total weight		about 5500 kg
