Large Diameter Pile Multi-Function Drilling Rig For Skyscraper
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 sets per month |
| Supply Ability: | 300 sets per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications
1. Hydraulic or Electric type
2. Delivery:15-20 workdays after down payment
Large Diameter Pile Multi-Function Drilling Rig For Skyscraper
APPLICATIONS:

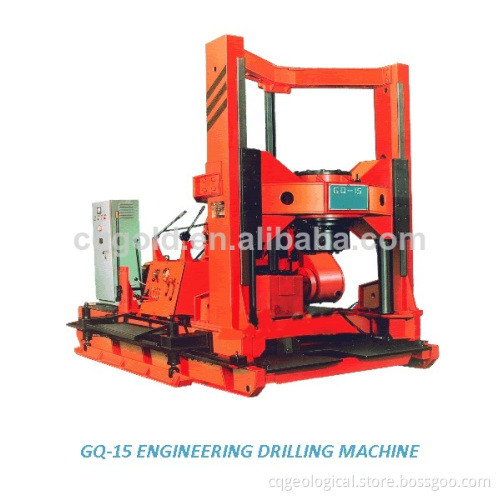

GQ-15 multi-function drilling rig is newly designed special for large diameter pile hole drilling, can use forward-circulation and reverse circulation drilling methods mainly used in drilling large diameter pile for building, skyscraper, dam, harbor, bridge etc. and drilling large diameter well.
FEATURES:
1.Big torque, lightweight and compact structure in compare with same kind machine.
2.Mast, top-drive head move down or up along with, strength and rigidity.
3.Top-drive head has large inner diameter (182×182mm).
4.Reverse-circulation drilling if equipped with necessary equipment as well as forward-circulation drilling.
5.Strength, five forward speeds and one reverse speed, suitable for drilling a variety of rock, easy to handle accidents happened in hole.
6.Top-drive head is equipped with hand-powered chuck, square driving stem, large stroke, drilling efficiently.
7.Hydraulic feed, big pull and push force easy to make pressure and depression drilling.
8.Hydraulic retracting stroke is 1150mm, easy to lower and hoist drilling tools.
9.Walking device, easy to move and find accurate hole position.
10.Reasonable arrangement, easy to operate, smooth.
11.Can be equipped with special derrick if user needs.
Technical Specifications
|
hole dia (mm) |
600-1500 |
|
|
drilling capacity (m) |
100-50 |
|
|
top drive head speeds(r/min) |
forward |
13.5;22.8;40.19;63.9;98.5 |
|
reverse |
12.85 |
|
|
max torque (N.m) |
22100 |
|
|
top drive head inner hole (mm) |
182182 |
|
|
top drive head max pull force(KN) |
27 |
|
|
top drive head max push force(KN) |
98.3 |
|
|
top drive head stroke(mm) |
1000 |
|
|
hoist lift capacity with singlerope(KN) |
48 |
|
|
retracting distance(mm) |
790 |
|
|
oil pump |
SCB32/12 twin-gear oil pump |
|
|
|
|
Y225S-4 37KW |
|
diesel engine |
2135AG 50Hp |
|
|
overal dimensions(L*W*H)mm |
3620×1880×2704 |
|
|
drill body weight(excluding power)kg |
5900 |
|
