GQ-60 Top-drive Head Engineering Drilling Rig For Foundation
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 sets per month |
| Supply Ability: | 300 sets per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications
1. Hydraulic or Electric type
2. Delivery:15-20 workdays after down payment

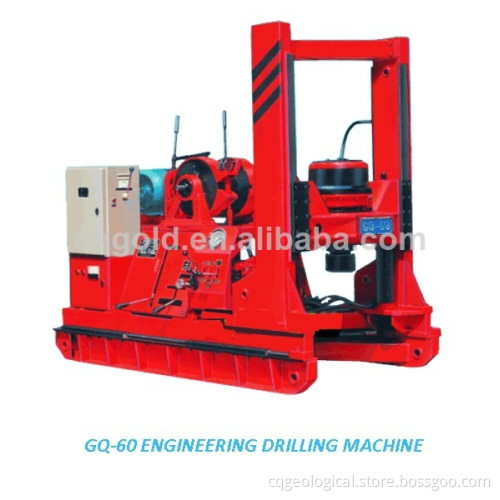

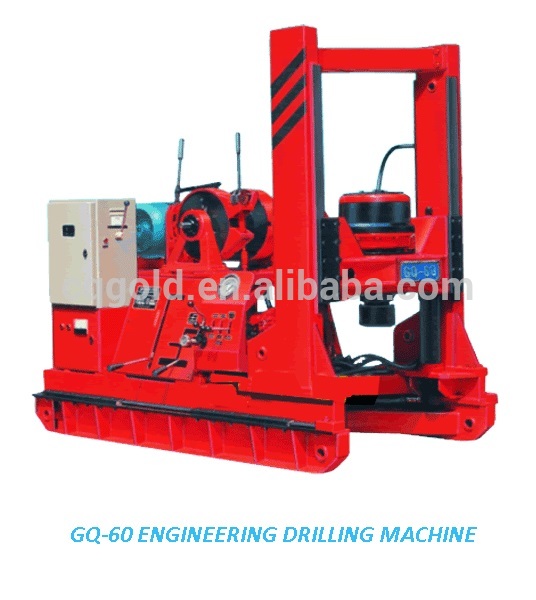

GQ-60 Top-drive Head Engineering Drilling Rig For Foundation
APPLICATIONS:
GQ-60 Engineering drilling rig is newly designed and manufactured according to the requirement of foundation engineering, suitable for drilling medium mini-type grouting hole of building, skyscraper, dam and harbor and drilling water well.
FEATURES
1.Mast structure, top-drive head can move down or up along with, strength and rigidity
2.Large torque, compact structure, easy to move
3. Top-drive head is equipped with hydraulic chuck, drilling Efficiently.
4. Reasonable arrangement, easy to operate, smooth and quick.
Technical Specifications
|
hole dia (mm) |
600 |
|
|
drilling capacity (m) |
30 |
|
|
topdrive head speeds(r/min) |
forward |
40;118;218;300 |
|
reverse |
62 |
|
|
max torque (N.m) |
4500 |
|
|
topdrive head max pull force (KN) |
58.86 |
|
|
topdrive head max pulsh force (KN) |
44.15 |
|
|
top-drive head stroke (mm) |
700 |
|
|
hoist lift capacity with singlerope (KN) |
30 |
|
|
retracting stroke (mm) |
580 |
|
|
oil pump |
CB32 oil gear pump |
|
|
power unit |
electric motor for rotary |
Y180L-4 22KW |
|
electric motor for hoist |
Y160M-4 11KW |
|
|
innerdia if spindle (mm) |
2200×1200×2050 |
|
|
drill body weight(kg) |
2500 |
|
