Truck-Mounted Water Well Drilling Rig For Water Drinking
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 sets per month |
| Supply Ability: | 300 sets per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications
1. Hydraulic or Electric type
2. Delivery:15-20 workdays after down payment

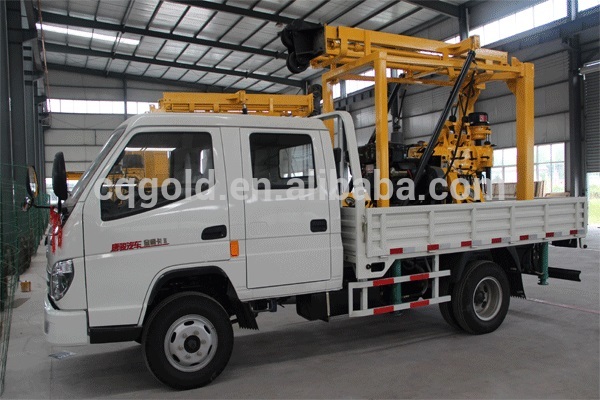

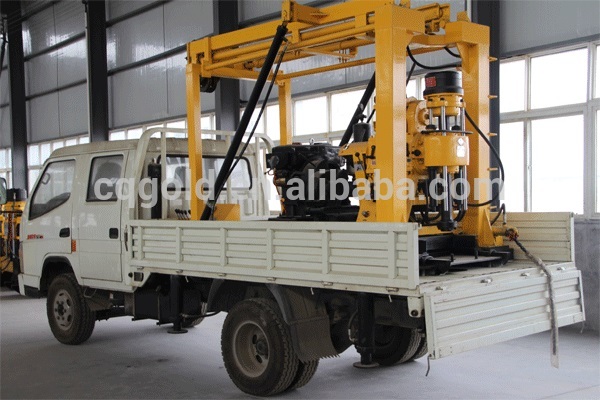

Truck-Mounted Water Well Drilling Rig For Water Drinking
XYC-200GT truck-mounted drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees,subgrade grouting hole,drilling and direct grouting, civil well earth temperature central air-conditioner,etc.
SPECIFICATION
|
Item |
Number |
||
|
Drilling method |
Rotary |
||
|
Drilling depth |
200meter |
||
|
Drilling hole diameter |
75mm-300mm |
||
|
Power |
15 KW 22Hp |
||
|
Rig working outside size |
Length |
5995mm |
|
|
Width |
2060mm |
||
|
Height |
7500mm |
||
|
Rig weight |
1500kg |
||
|
Drilling kelly |
53/59*4 meter |
||
|
Drilling rod |
50mm |
||
|
Drilling bit |
75mm-300mm |
||
|
Spindle |
64,128,287,557 |
||
|
Hoist |
Hoist reel |
140mm |
|
|
Single lifting speed |
0.12,0.22,0.49,0.95 |
||
|
Single lifting force |
24KN |
||
|
Wireline capacity |
35 meters |
||
|
Wireline size |
13mm |
||
|
Mast |
Loading capacity |
5T |
|
|
Mast height |
6m |
||
|
Mast leg |
160×120×6 |
||
|
Swivel |
Max lifting force |
50KN |
|
|
Equiped hoise diameter |
50mm |
||
|
Mud pump |
Model |
BW-160 |
|
|
Displacement |
160L/min |
||
|
Working pressure |
1.3Mpa |
||
|
Reciprocate times |
165 times/min |
||
|
Truck |
Model |
OuLingZB1043LSDS |
|
|
Motor mode/ power |
LN4D27E3/66KW |
||
|
Seating capacity |
3+3 |
||
