Hydraulic Water Well Truck Drilling Rig For Water Drinking

Get Latest Price

Payment Type:: T/T, L/C, D/A, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Productivity:	300 sets per month
Supply Ability:	300 sets per month
Payment Type:	T/T,L/C,D/A,Western Union
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Land,Air

Product Description

Specifications

truck drilling rig
1. Hydraulic or Electric type
2. Delivery:15-20 workdays after down payment

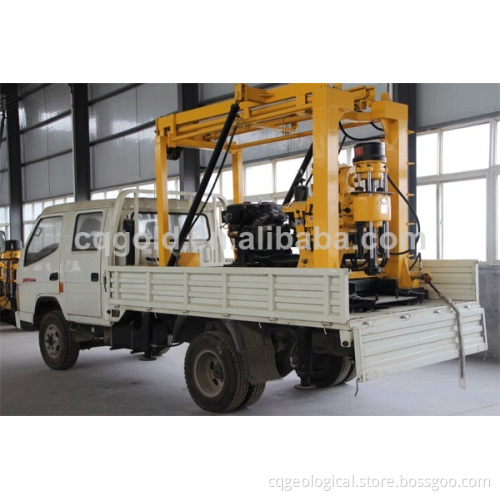

Hydraulic Water Well Truck Drilling Rig For Water Drinking

XYC-200GT truck drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees,subgrade grouting hole,drilling and direct grouting, civil well earth temperature central air-conditioner,etc.

SPECIFICATION

Item			Number
Drilling method			Rotary
Drilling depth			200meter
Drilling hole diameter			75mm-300mm
Power			15 KW 22Hp
Rig working outside size		Length	5995mm
		Width	2060mm
		Height	7500mm
Rig weight			1500kg
Drilling kelly			53/59*4 meter
Drilling rod			50mm
Drilling bit			75mm-300mm
Spindle			64,128,287,557
Hoist	Hoist reel		140mm
	Single lifting speed		0.12,0.22,0.49,0.95
	Single lifting force		24KN
	Wireline capacity		35 meters
	Wireline size		13mm
Mast	Loading capacity		5T
	Mast height		6m
	Mast leg		160×120×6
Swivel	Max lifting force		50KN
	Equiped hoise diameter		50mm
Mud pump	Model		BW-160
	Displacement		160L/min
	Working pressure		1.3Mpa
	Reciprocate times		165 times/min
Truck	Model		OuLingZB1043LSDS
	Motor mode/ power		LN4D27E3/66KW
	Seating capacity		3+3
