Portable Water Borehole Drilling Machine

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Productivity:	300 sets per month
Supply Ability:	300 sets per month
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Land,Air

Product Description

Specifications

widely used for core drilling of shallow-medium hole, drill with AQ,BQ,NQ

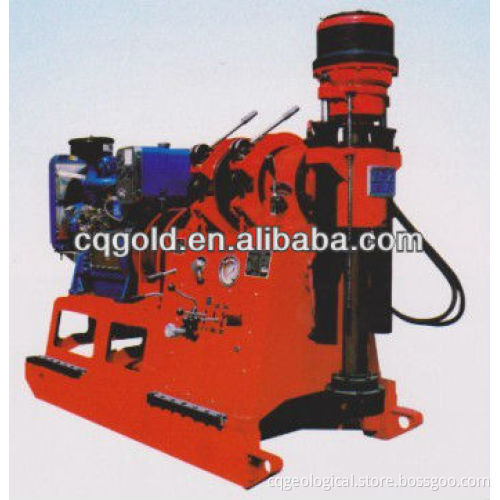

XY-2 hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydro-geological, water well and pile grouting hole drilling.

Technical Specifications

Drilling capacity(m)	AQ wire-line rod	560
	BQ wire-line rod	350
	NQ wire-line rod	250
	73 rod	100 m(300 mm hole dia)
Spindle speed(r/min)	Forward	65;114;180;248; 310;538;849;1172
	Reverse	51;242
Max torque (Nm)		2760
Angle reange		0-90°
Spindle max pull force(KN)		60
Spindle stroke (mm)		600
Hoist max life capacity with single rope (KN)		30
Spindle inner dia (mm)		76
Oil pump		SCB32/12
Power unit	Electric motor	Y180L-4,22Kw
	Diesel engine	395K2,19.85Kw
Inner dia of spindle (mm)		2150×900×1690
Drill body weight (excluding power)(kg)		950
