Ground Hole Drilling Machine and Well Drill Water
1. Used for geological exploration, road and mining.

Ground Hole Drilling Machine and Well Drill Water

Applications:

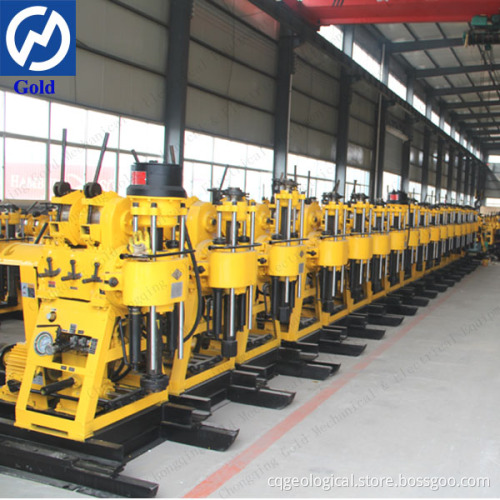

HZ-180YG drilling rig is mainly used for geological general investigation and exploration, road and tall

building foundation exploration, kinds of hole in concrete structure, river levees,civil wells and earth

temperature central air-conditioner,etc.

Features:

1. Highest speed can reach 1045r/min, improving drill efficiency

2. 53 x 59 drilling rod adopted, with high rigidity and strong delivery torque.

3. The machine is equipped with national patent technology taper clutch, with strong transmission

torque, easy operation and free of maintenance.

4. For the winch, we use large module planetary gear and add supporting frame, greatly increasing

hoisting and braking ability of the winch.

5. Vertical spindle is fixed by four sets of bearings to ensure that the rotary machine is rigid enough

for gravel layer and other complex geoloical conditions.

Technical specification:

Unity machine parameter
Drilling depth	30--180m
Drill rod caliber	50 42mm
End hole caliber	75 46mm
Max. open hloe caliber	220mm
Drilling angle	90°~75°
Drill weight (No include power)	610kg
Unity machine dimensions	2.1×0.9×1.3m
Spindle
spindle speed	130, 300, 480, 730, 830, 1045r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	1600kg
Single line lifting speed	1.06, 0.67, 0.32m/s
Wirerope caliber	13mm
Wirerope cubic measure	35m
Hug floodgate caliber	254mm
Hug folldgate belt width	50mm
Distance between drill and hole	230mm
Mud pump
Type	Horizontal single urn twin-action
Displacement	170L/min
Maximum pressure	1.5Mpa
Work pressure	0.7Mpa
Power
Diesle engine	S1105 18HP
Electric motor	Y160M-4 11KW
