600-1400M Water Well Drilling Machine and Mining Drilling Machine
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 sets per month |
| Supply Ability: | 300 sets per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications

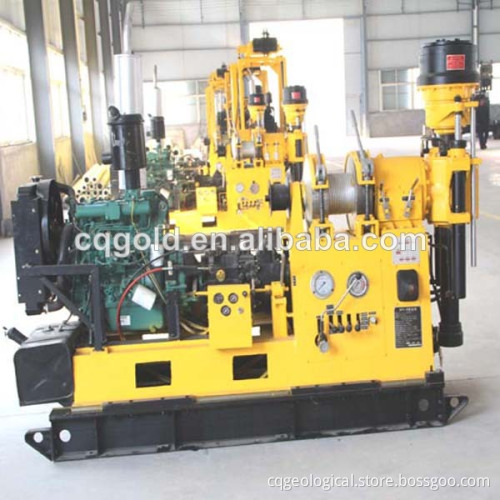

Water Well Drilling Machine and Mining Drilling Machine
The Drilling Rig is a multipurpose spindle diamond core drilling rig suitable
for high-speed medium and deep borehole drilling in complex rock formation.
Application:
Core Drilling, Engineering Geology Exploration, Hydrology and Water Well Drilling, as well as Large
Diameter Foundation Piles Construction
Technical Specification:
|
Unity machine parameter |
|
|
Drilling depth |
600-1400m |
|
Max open hole caliber |
300mm |
|
End hole caliber |
75mm |
|
Drilling Rod diameter |
60mm |
|
Drilling angle |
90°~65° |
|
Drill rig moving stroke |
450mm |
|
Spindle |
|
|
spindle speed ( Diesel Engine) |
Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min |
|
Reverse 65 201r/min |
|
|
spindle speed ( Electric Motor) |
Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min |
|
Reverse 54 167r/min |
|
|
Spindle stroke |
600mm |
|
Spindle max. pressure force |
90KN |
|
Spindle inner diameter |
96mm |
|
Lifting capacity |
120KN |
|
Main Hoist |
|
|
Max.Single line lifting capacity |
45KN |
|
Max.Single line lifting speed |
0-45m/s |
|
Wirerope caliber |
17.5-18.5mm |
|
Hoist capacity of wireline |
90-110m |
|
Roller Diameter |
140mm |
|
Wirerope Diameter |
6mm |
|
Wirerope length |
450m |
|
Mud pump |
|
|
Type |
BW-250 |
|
Displacement |
250 L/min |
|
Work pressure |
80kg/cm² |
|
Water inlet pipe diameter |
75 mm |
|
Water outlet pipe diameter |
50 mm |
|
Power |
|
|
Diesel engine |
YC4E135-1 100KW |
|
Electric motor |
Y225S-4 37KW |
