Optional Depth 100m,250m,600m Ground Water Well Drilling Rigs and and Ground Hole Drilling Machine for Good Sale
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 sets per month |
| Supply Ability: | 300 sets per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications

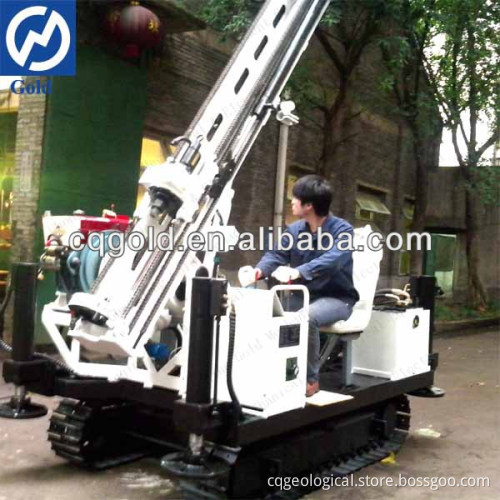

XYX-3 Walking Drilling Machine for Drilling Water Well and Ground Hole
Main Features:
1. The machine is equipped with crawler chassis device, easy to move and speed
fast, the crawler chassis' Material system is very resistent steel mill.
2. Hydraulic oil pressure feed device , improve drilling efficiency.
3. Hydraulic chuck, can complete no-- stopping rotating.
4. Pressure gauge display the condition of bottom drilling hole.
5. Drilling mast controlled by hydraulic cylinder.Improve the efficiency.
6. Diesel engine adopt the electric starter , to reduce the labor intensity.
Technical Specification:
|
Drilling depth |
m |
100 |
250 |
300 |
600 |
||||||
|
Drilling DI |
mm |
300 |
200 |
150 |
75 |
||||||
|
Open hole DI |
mm |
300 |
|||||||||
|
End hole DI |
mm |
75 |
|||||||||
|
Drilling rod |
mm |
Φ60 |
|||||||||
|
Drilling angle |
90°-65° |
||||||||||
|
Rotary Spindle |
|||||||||||
|
Spindle forward speed |
r/min |
30-1050 |
|||||||||
|
Spindle reverse speed |
r/min |
29-137 |
|||||||||
|
Spindle stroke |
mm |
560 |
|||||||||
|
Spindle inner diameter |
mm |
96 |
|||||||||
|
Spindle lifting capacity |
KN |
60 |
|||||||||
|
Main Winch ( drive hydraulic system) |
|||||||||||
|
Single line lifting speed |
m/min |
0-45 |
|||||||||
|
Hug floodgate belt width |
mm |
90 |
|||||||||
|
Tightrope diameter |
mm |
14 |
|||||||||
|
Hoist single line lifting capacity |
KN |
40 |
|||||||||
|
Roller diameter |
mm |
200 |
|||||||||
|
Roller cubic measure |
m |
30 |
|||||||||
|
Mud pump |
|||||||||||
|
Horizontal Triplex BW-250 mud pump |
|||||||||||
|
Displacement |
L/min |
250 |
|||||||||
|
Work pressure |
Mpa |
7 |
|||||||||
|
Water inlet caliber |
mm |
75 |
|||||||||
|
Water to exit caliber |
mm |
50 |
|||||||||
|
Gear Oil pump |
|||||||||||
|
Duplex gear oil pump CBF-F63/25 |
|||||||||||
|
Front displacement,pressure |
63mL/r 20Mpa |
||||||||||
|
Behind displacement,pressure |
25mL/r 20Mpa |
||||||||||
|
Drilling rig Power |
|||||||||||
|
Diesel engine |
Hp |
4100# 40HP |
|||||||||
|
Electric motor |
KW |
Y180L-4 22KW |
|||||||||
