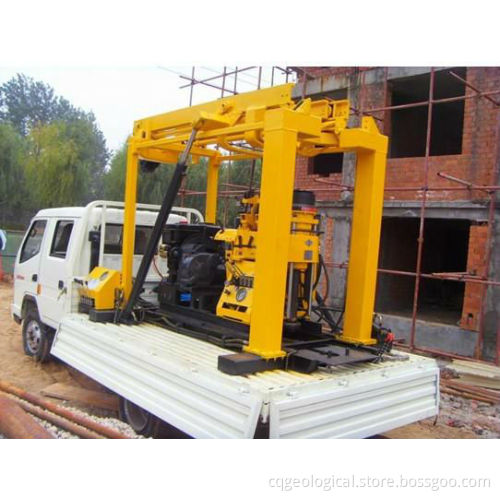

GDX200 Truck Mounted water well Drilling Rig
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 sets per month |
| Supply Ability: | 300 sets per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
Specifications
2. multi functional drilling rig, can be used for wa
Main Features:
1. compact structure with small truck, very easy to move and transport.
2. multi functional drilling rig, can be used for water well drill, coring drill, rock sampling, geological investigation&exploration, geothermal well drill, etc.
3. strong drilling ability, can drill through any materials, including hard rock, rock, cobble, gravel, clay, soil, etc
4. hydraulic system, convenient to operate.
5. diesel engine for power, can be used in any area, especially where is not available for electricity.
Technical Parameter:
|
Item |
Unit |
Parameter |
||
|
structure |
|
rotary |
||
|
power |
kw |
15 |
||
|
working state overall dimension |
length |
mm |
5995 |
|
|
width |
mm |
2060 |
||
|
height |
mm |
7500 |
||
|
structure weight |
kg |
1500 |
||
|
drilling depth |
m |
200 |
||
|
hole diameter |
mm |
75-300 |
||
|
driving lever |
mm |
53/59x4000 |
||
|
drill rod |
mm |
50 |
||
|
drill bit |
mm |
75-300 |
||
|
vertical shaft speed |
r/min |
64,128,287,557 |
||
|
winch |
roller diameter |
mm |
140 |
|
|
winding speed of single cord |
m/s |
0.12,0.22,0.49,0.95 |
||
|
lifting power of single cord |
kN |
24 |
||
|
content of roller |
m |
35 |
||
|
steel wire diameter |
mm |
13 |
||
|
drill tower |
rated load |
t |
5 |
|
|
effective height |
m |
6 |
||
|
tower leg specification |
mm |
160X120X6 |
||
|
faucet |
max lifting power |
kN |
50 |
|
|
rubber tube diameter |
mm |
50 |
||
|
mud pump |
model |
|
BW160 |
|
|
displacement |
L/min |
160 |
||
|
working pressure |
Mpa |
1.3 |
||
|
Reciprocating frequency |
number/min |
165 |
||
|
truck |
model |
|
ZB1043LSDS |
|
|
engine type/power |
|
LN4D27E3/66KW |
||
|
seat |
|
3+3 |
||
