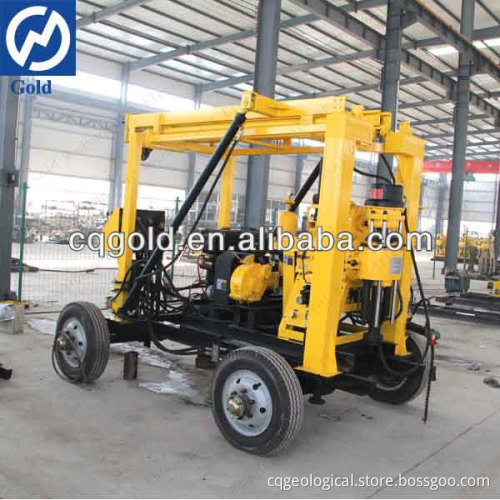

Trailer Mounted Water Well Drilling Rig
1.Wheel undercarrigae device
2.Portable
3.Improve drilling efficiency
4.Reduce labor

Trailer Mounted Water Well Drilling Rig

Technical Specification:

Drilling depth	m		100				250	300		600
Drilling DI	mm		300				200	150		75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed					r/min				30-1050
Spindle reverse speed					r/min				29-137
Spindle stroke					mm				560
Spindle inner diameter					mm				96
Spindle lifting capacity					KN				60
Main Winch ( drive hydraulic system)
Single line lifting speed						m/min			0-45
Hug floodgate belt width						mm			90
Tightrope diameter						mm			14
Hoist single line lifting capacity						KN			40
Roller diameter						mm			200
Roller cubic measure						m			30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement				L/min					250
Work pressure				Mpa					7
Water inlet caliber				mm					75
Water to exit caliber				mm					50
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure									63mL/r 20Mpa
Behind displacement,pressure									25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp							4100# 40HP
Electric motor		KW							Y180L-4 22KW
