Contact NowXY-2F Engineering Exploration Core Drilling Machine

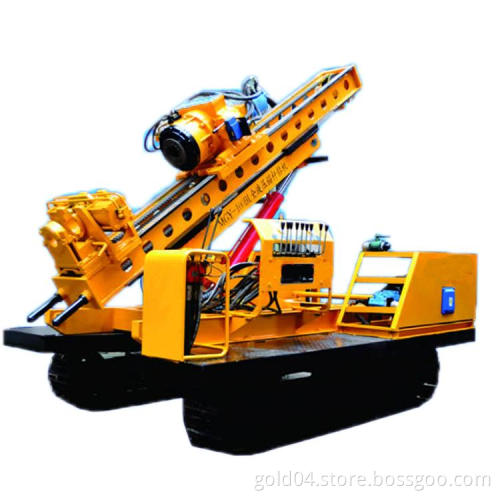

XY-2F Mobile core drill rig is derived from XY-2 drill rig, it can move conveniently because adding walking device base on XY-2 rig. It is small and light-weighted, mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in soil anchoring hole, anchoring bar and engineering geological, hydro-geological, water well and pile grouting hole drilling.It`s light weight, compact, good quality, powerful, wide performance, good versality.
Technical Specifications
|
|
73 rod |
100(300 mm hole dia.) |
|
60 rod |
320 |
|
|
50 rod |
380 |
|
|
42 rod |
530 |
|
|
AQ wire line rod |
565 |
|
|
BQ wire line rod |
460 |
|
|
NQ wire line rod |
350 |
|
|
Spindle speed(r/min) |
Forward |
65;114;180;248;310;538;849;1172 |
|
Reverse |
51;242 |
|
|
Max torque (Nm) |
2900 |
|
|
Angle range |
0-90° |
|
|
Spindle max pull force(KN) |
60 |
|
|
Spindle stroke (mm) |
600 |
|
|
Hoist max life capacity with single rope (KN) |
30 |
|
|
Stroke of walking device |
450mm/stroke |
|
|
Spindle inner dia (mm) |
Φ76 |
|
|
Oil pump |
CBK1020/8Twin-geal oil pump |
|
|
Power unit |
Electric motor |
Y180L-4,22Kw |
|
Diesel engine |
395K2,19.85Kw |
|
|
Dimension(mm) |
2150×900×1690 |
|
|
Drill body weight (excluding power)(kg) |
950 |
|
