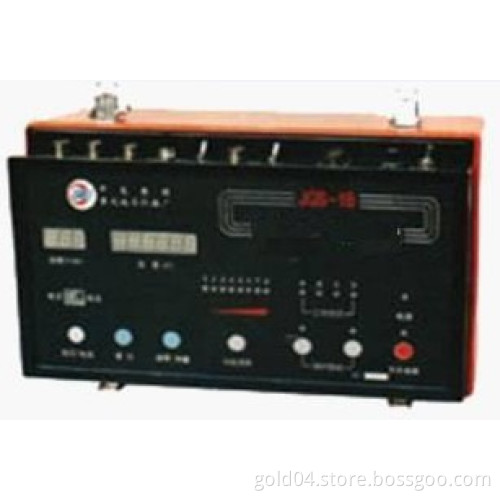

Digital Geophysical Integrated Well Logger Downhole Logging System

Main Applications and Features

Coal Field Digital Integrated Logging
Digital Geophysical Integrated Well Logger Well Logging Syetem JGS Automatic Engineeing Well Logging System
Hydrological Engineering Digital Integrated Logging
Solid Metal Ore Digital Integrated Logging
Other Minerals Digital Integrated Logging
External Laptop (Desktop PC)
For upward logging, also for downward logging
Receive digital signal, analog signal
8 taps of power supply current, Optional
Automatic sampling as per depth interval, sampling interval arbitrarily
Indoor simulation logging, repeatability observation of instruments and probes
Membrane panel, attractive and durable

Technical Specifications

12bit A/D Conversion, Program-Controlled Magnification K=0.5~128
Counting Channel: f≤500KHz
Digital Signal Transmission Frequency: 9600bit/s
Power Supply Cycle: 400ms
Current: 2mA~500 mA Optional
Signal Input Range: ≤±10V
Continuous Working Time: ≤24 hr
Power Consumption: <200W
Volume: 420×260×210mm,
Weight: <7Kg
Working Temperature Range: -10°C~ +50°C
Working Power Supply: AC220V±10% 50Hz ±5%
Logging Speed: 0~30 m/min Adjustable (as per sampling interval)
Digital Geophysical Integrated Well Logger Well Logging Syetem JGS Automatic Engineeing Well Logging System

Logging Working Software System

12bit A/D Conversion, Program-Controlled Magnification
?Operation Environment: Windows98/2000/XP
Sampling Interval: Arbitrary (1~1000cm)
Setting (1cm, 2cm, ...1000cm)
Maximum depth of one-time acquisition: 3000m (0.1m sampling interval)
Depth automatic alignment of multi-parameters
Superposition of multi-parameters up to 10
Curve movement, anomaly removal, smoothing, inverted order, , segmentation, calculation, etc.
Interpretation of profile input, automatic generation of rock stratum name, thickness and baseplate depth
Curve amplification and compression
5 types of curve depth ratio: 1 50, 1 100, 1 200, 1 500, 1 1000
Continuous drawing production in color or black-and-white effects
Output graph maximum width: 415mm, length: 2310mm
Digital Geophysical Integrated Well Logger Well Logging Syetem JGS Automatic Engineeing Well Logging System
