CCTV Drillhole Camera
Welcome To Gold Team
Main Applications and Features

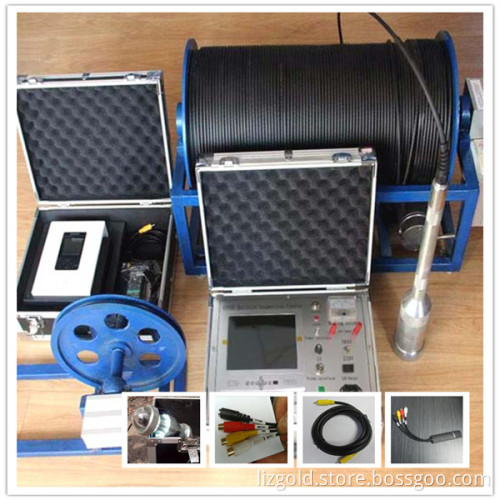

1. JKX-3 Borehole Inspection Camera adopts reflective axicon lens to take 360° hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order N→E→S→W→N. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.
100-2000m Borehole Inspection Camera through inspecting drill hole to know the inclination of drilling .
2. Data Processing Function
· Browsing, real-time display of position and depth
· Marking of images and literal texts
· Making of interpretation lines on images
· For convolution rotation, see coregraph
· Calculate the inclination of stratum construction
· Measure the thickness of rock stratum and the width of cracks
Technical Specifications
- 1Vp-p PAL TV Signal 75Ω Video Output
- 1Vp-p PAL TV Signal 75Ω Video Output
- Definition: 450TVL
- Viewing Angle: 360° Hole Wall
- Lighting: Built-in K3200° Trichromatic Lighting Ring
- Probe Diameter: φ70mm
- Adaptation Aperture: φ75~φ300mm
- Power Supply: AC220V±10% 50Hz
- Software Operating Environment: Win2000/XP
- Adapted Hole Depth: 0~2000mm Clear Water Hole or Dry Hole
Products Showcase
contact :
|
Chongqing Gold Mechanical & electrical Equipment Co.,Ltd We take account of clients` requirement to make reliable products through precise design and delicate technology. We keep great relation with our clients and offer high-level service through good performance and we keep our promise in the whole process you using our products. Gold`s instruments are widely used in engineering, hydrology, water and electricity, coal, metallurgy all over the world We are ready for all challenges !
|
|||
| skype | gold 200983 |
| TEL | 86 -023 62794421 |
| mobile phone | 86 15922636269 |
| contact person | liz wang |
