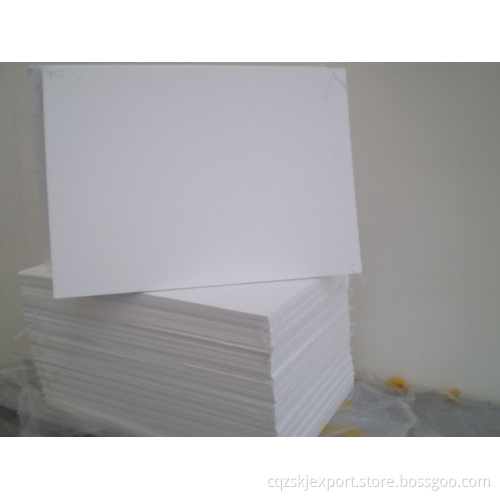

Glassfiber Insulation Sheet

This product is made from glass fibers 0.2~6μm in diameter by wet process. It is characterized by light weight, low thermal conductivity, good flexibility, innocuity, noncombustibility, imputrescibility, aging resistance, stable chemical property and no contamination. This product is soft in texture, good at hand feel, easy to cut and for construction, applicable to the area with space restrictions and higher visual appearance requirement. It proves to be a kind of new high-grade material ideal for thermal insulation and sound absorption. The product is mainly used as the core of vacuum insulated panels.

Property:

Thickness(mm) 0.3-6mm (Free state)

Density (kg/m3) 110-160 (Free state)

Operating temperature(Centigrade) ≤450

Organic content (%) 0-3

Thermal conductivity (w/m. K) (25 Centigrade) 0.02-0.03

Max. Width (mm) 1200

Length: To be customized.

Applications:

I. Thermal insulation for appliances: Civil and industrial refrigerators and freezers, air conditioners, water heaters, shipping containers, drying machinery, thermostats, heating ovens, roasters and etc.

II. Thermal insulation for equipments: Ovens, solar heaters, water heaters; Fixed air conditioning units, large refrigerators, equipments for foodstuff refrigeration or cold storage, low-temperature devices; Large containers and other storage equipments which require high or low temperature.

III. Heat insulation and sound absorption for traffic/transportation tools: Motorcycles, cars, trains, ships, airplanes and etc.
